PDU-6SS

Features
  • Safe and secure power management

  • Peace of mind

  • Easy Installation

  • Our PDU-6SS single point power distribution and voltage monitoring system allows you to streamline your wiring while protecting your vehicle battery.

  • The PDU-6SS is a single point power distribution system

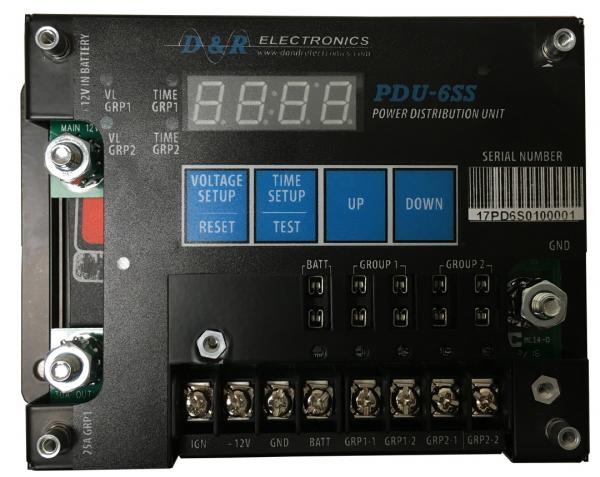

  • In addition to monitoring the incoming battery voltage via an LED display, the system monitors the voltage level of the connected accessories (up to 6).

  • The PDU-6SS divides the accessories in to three groups, battery, group 1 and group 2.
    Group 1 and two are monitored individually and can be programed separately with different minimum voltages that will trigger a low voltage group shut down.

  • If group one shuts down, group two will continue to function and be monitored.  If group two goes below its programed threshold, group two will then shut down.  The system will save enough battery energy so the vehicle can be restarted.

  • Any faulty fuse or connection will be visible on the LED display.

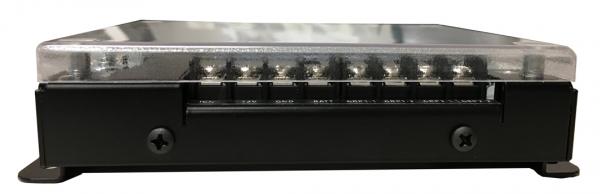

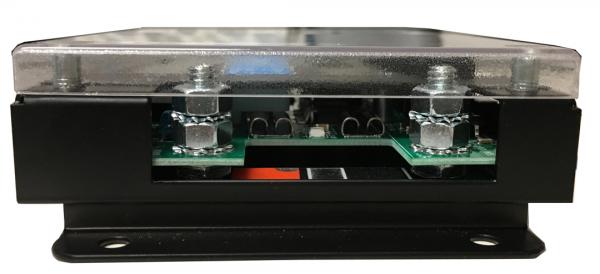

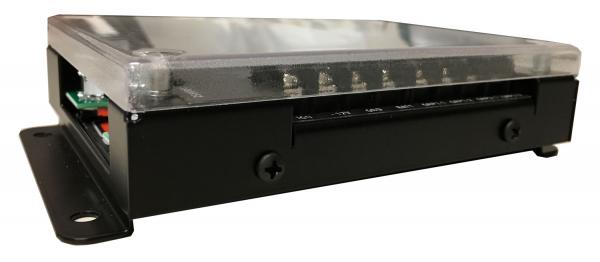

  • The PDU-6SS is all metal solid state construction.  It comes with a Plexiglas cover to reduce dust and dirt



Literature / Downloads

If you have other questions please contact us or call 1-800-538-7338

Read more about our equipment in newsletter section

Technical specifications

Voltage Range
11-18VDC
Maximum Current Load
10A per output, fused at 15A25A for heavy duty output, fused at 40A40A total maximum current per PDU
Stand-by Current
15mA
Operating Current
600mA
Programmable timer setup
1 minute - 99.59 hours
Fuse type
Mini Fuses for regular outputs Maxi fuse for heavy duty output
Operating Temperature
-40C to +65C (-40F to +149F)
Dimensions
L-6.0
Weight
1.15lbs
Zero voltage consumption in shut down mode
Test mode (20 seconds)
Reset mode
