Description:

Power Distribution Units (PDUs) provide a direct, easily traceable route to the input power source avoiding interfering with the vehicles factory wiring harnesses. Allowing for Programmable Low Battery Voltage Shutdown, Programmable Timed Shutdown, and Zero current consumption in Sleep Mode. PDU-13SS single point power distribution and voltage monitoring system allows you to streamline your wiring while protecting your vehicle battery

Gallery

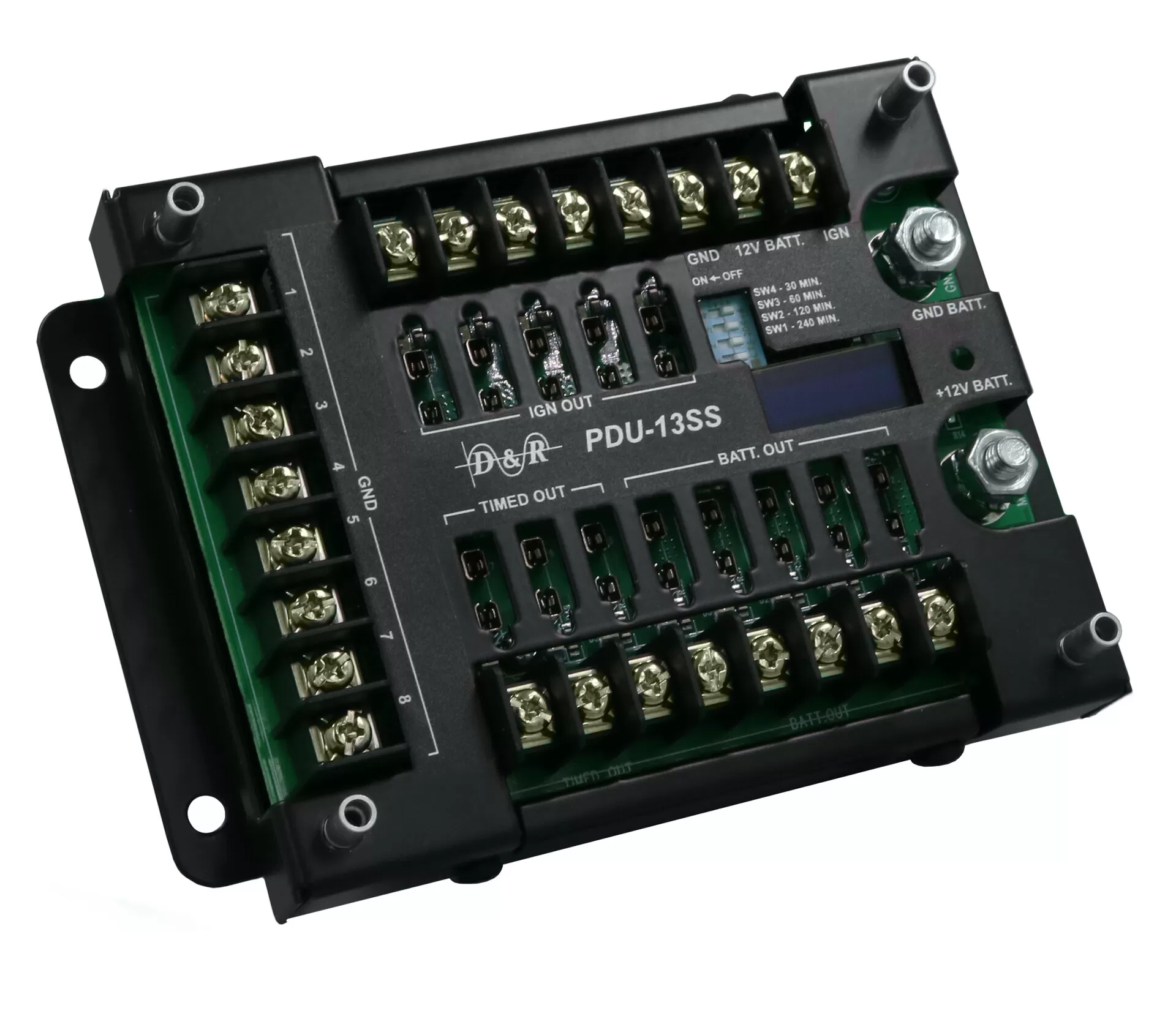

Uncovered board with empty fuse sockets and the timer DIP switch labelled SW4 30 MIN to SW1 240 MIN

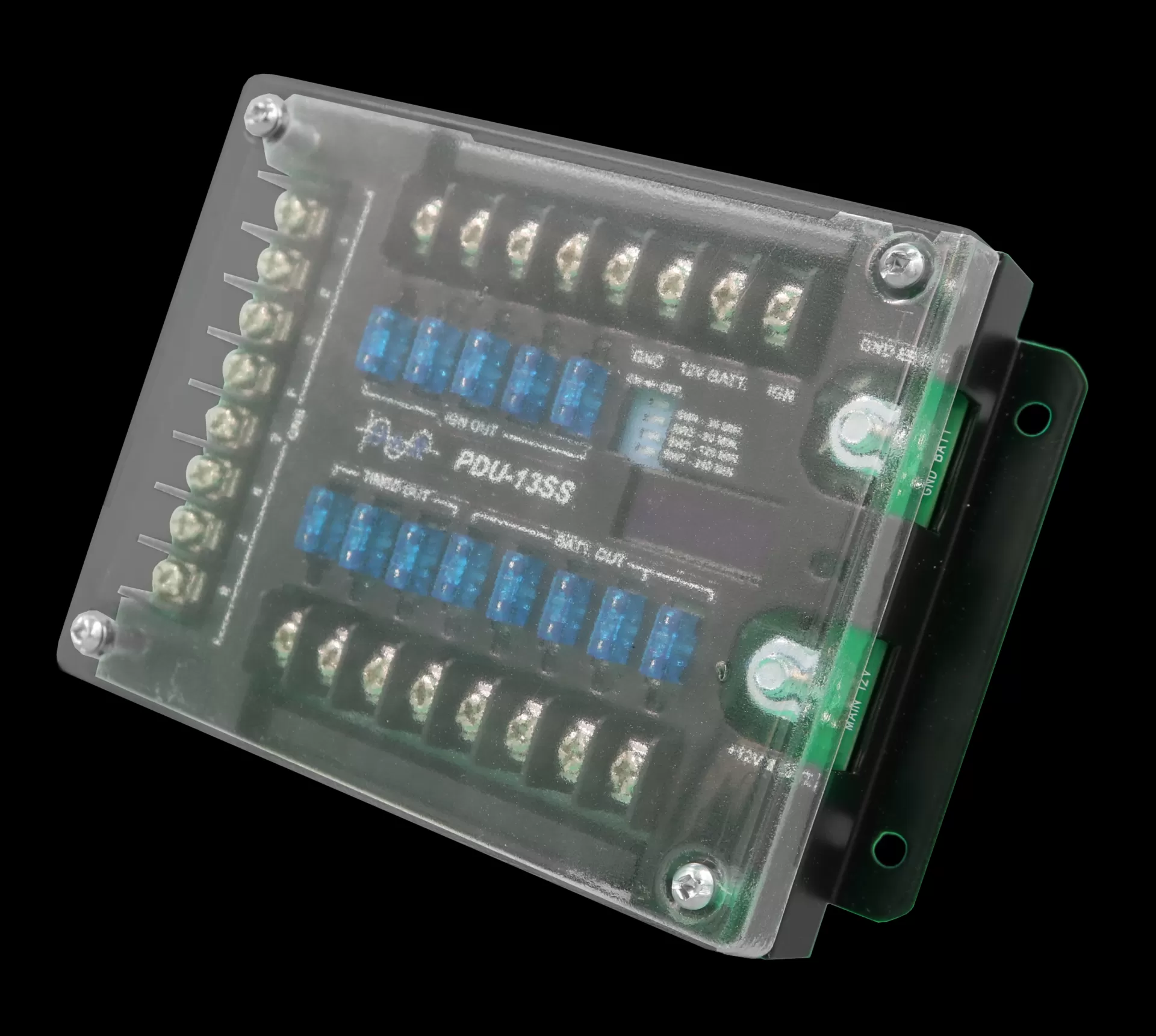

D&R PDU-13SS power distribution unit with blue mini blade fuses under a clear protective cover

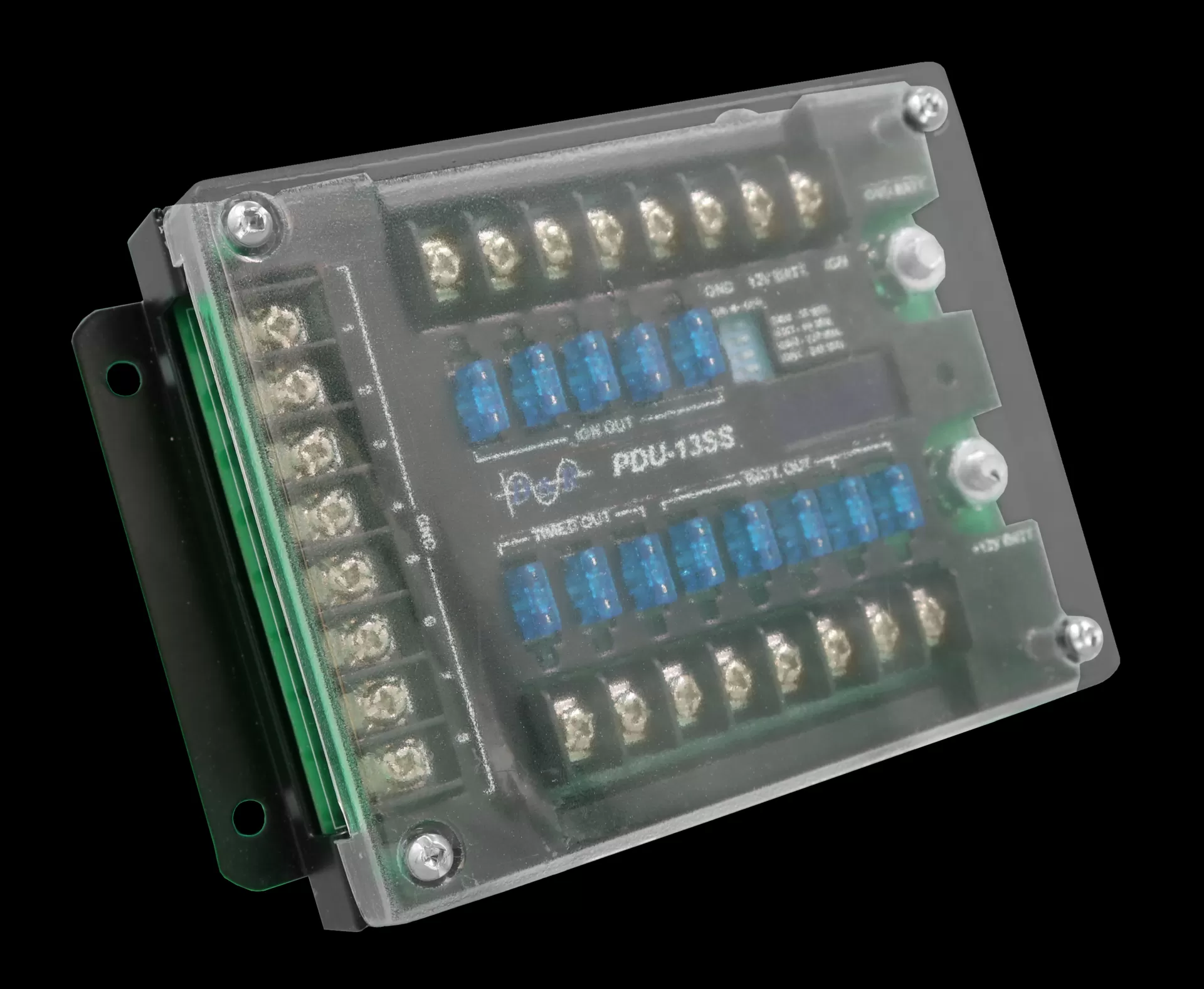

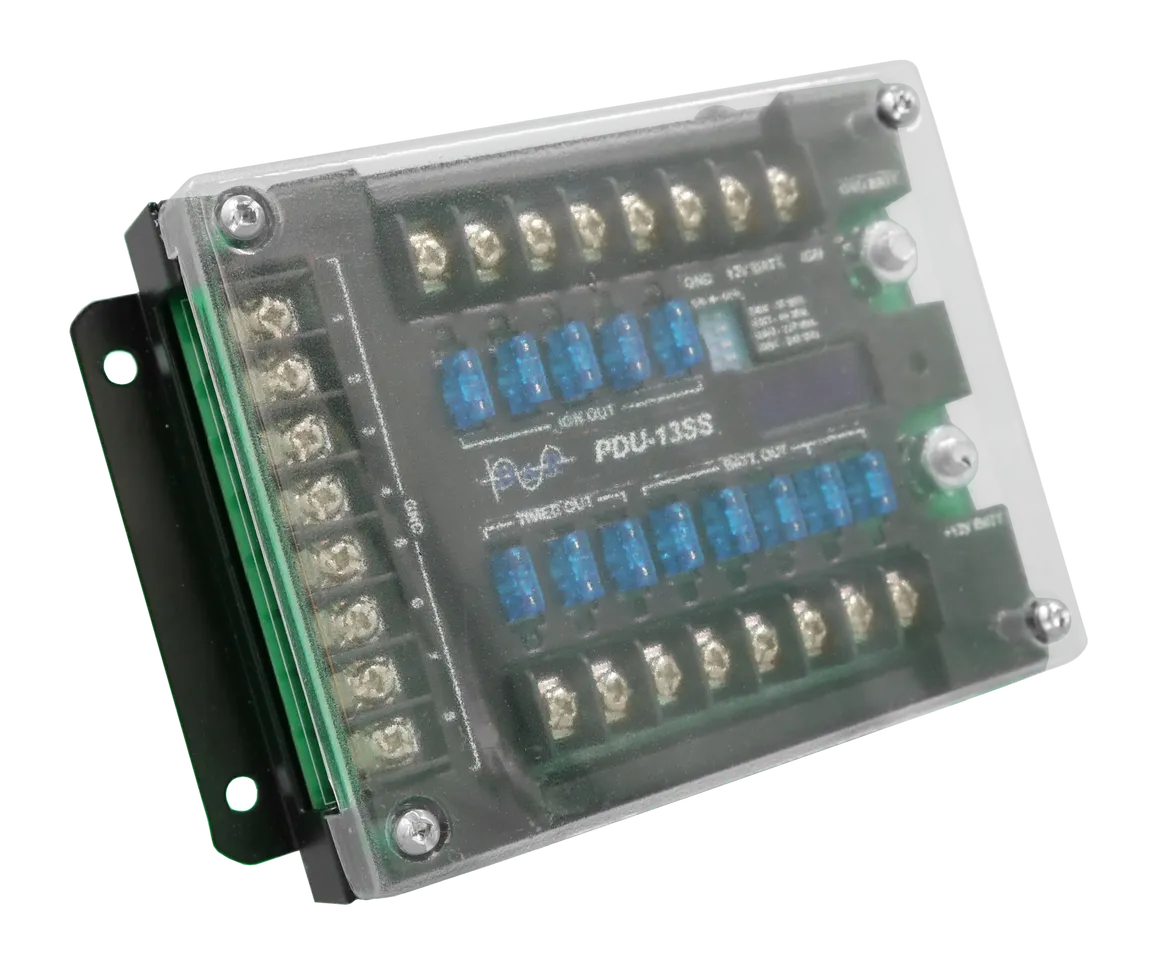

Clear cover over the fuse rows, with the GND BATT. and +12V BATT. stud posts at the right side

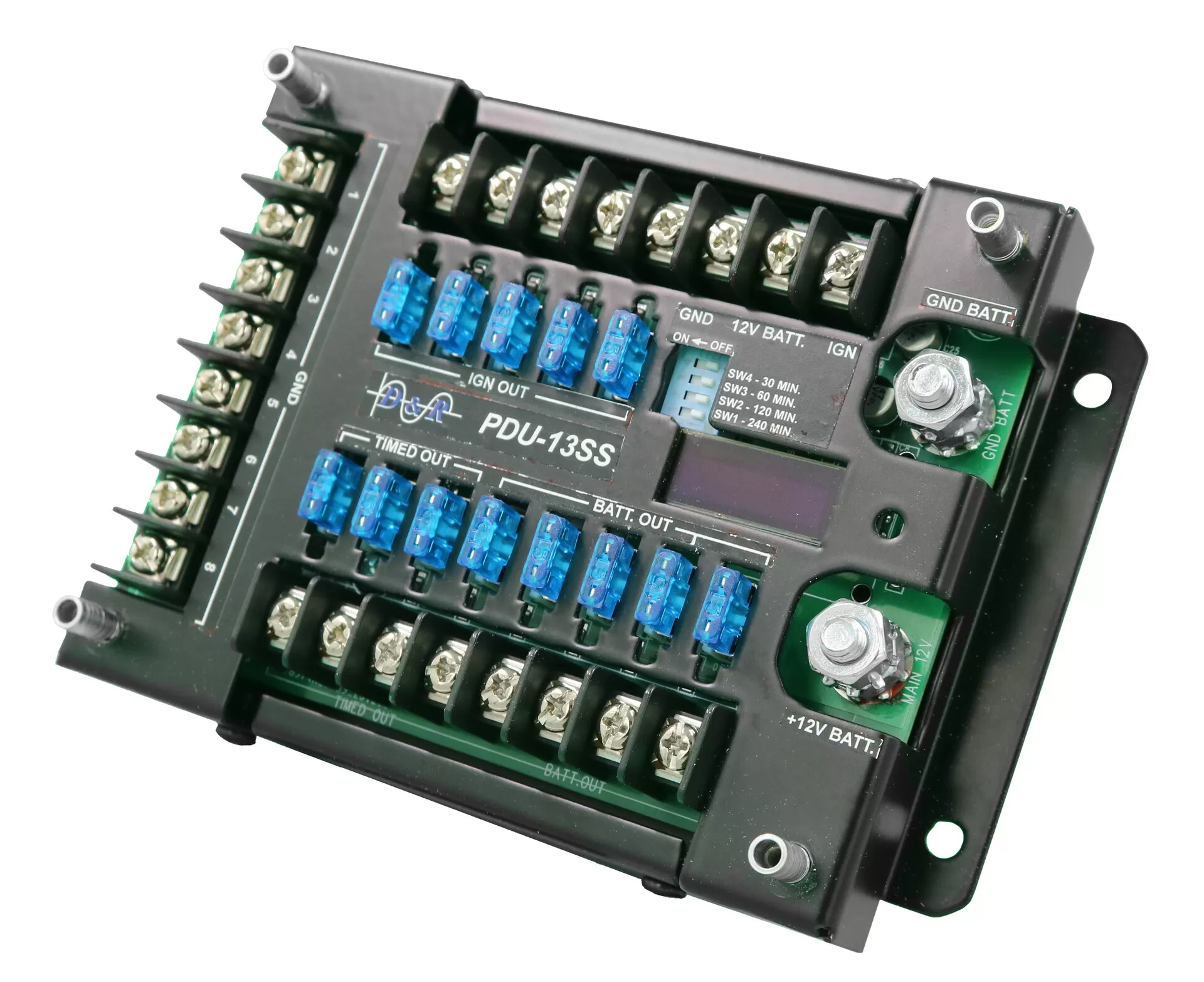

Cover removed, showing the IGN OUT, TIMED OUT and BATT. OUT fuse banks with blade fuses fitted

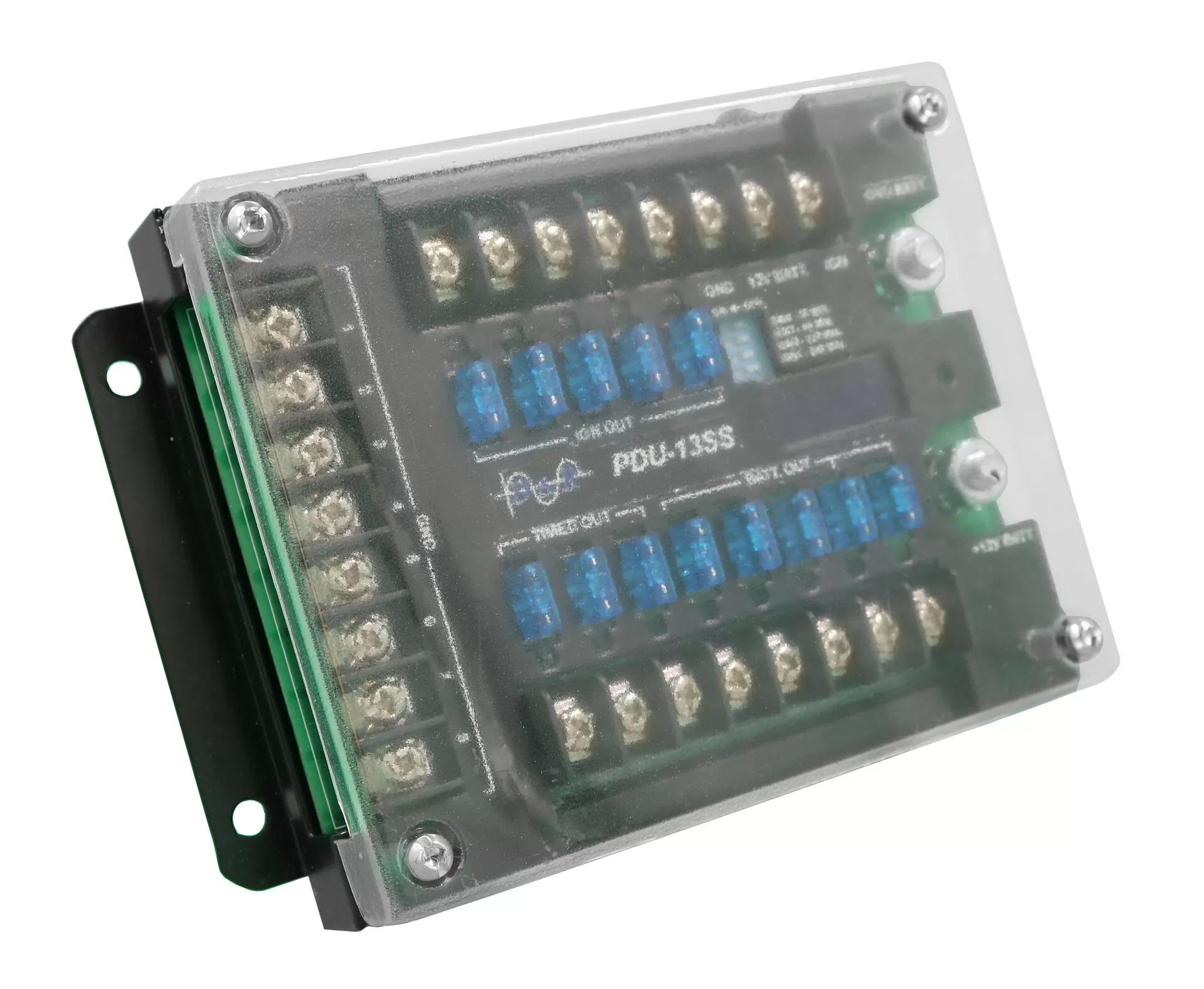

Covered unit angled from the left, its eight-screw GND terminal strip running down the left-hand edge

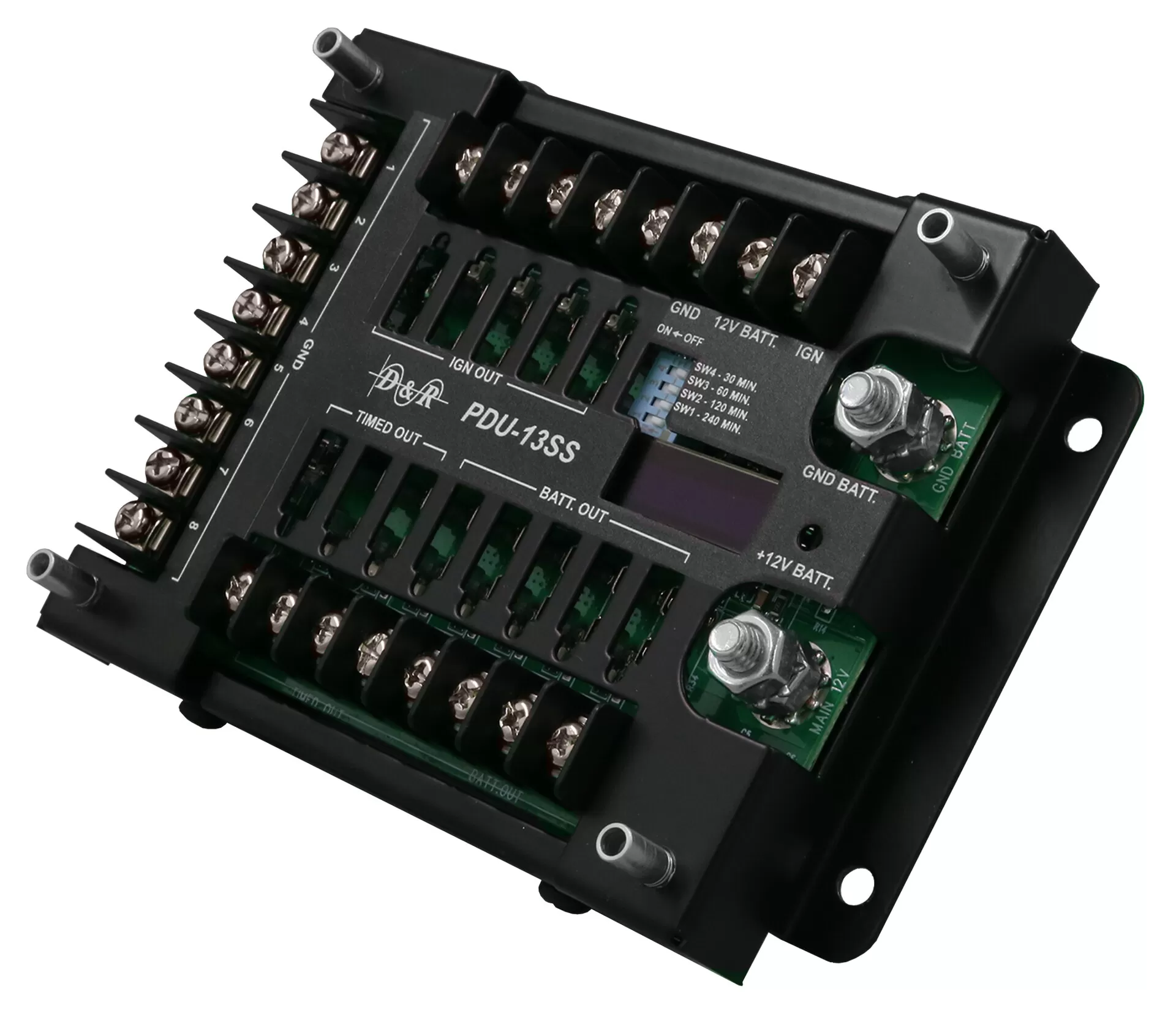

Fuse positions left empty, seen from the input end with spade terminals down the left-hand edge

PDU-13SS

Power Distribution Unit - 13SS

· Low Battery Voltage Shutdown at 11.5VDC.

· Programmable Timed Shutdown: 30 min, 60 min, 120 min, 240 min

· Vehicle Battery Voltage Monitoring

· Each output has an LED fuse status indicator

· ZERO Current consumption in Standby Mode

· 13 Outputs (5 battery, 5 Ignition and 3 timed)

Height	1.5 inches
Length	6.2 inches
Maximum Current Load	100A total
Maximum Current per Output Terminal	20A
Operating Temperature	-30°C to +65°C
Output(s)	13 (5 battery, 5 Ignition and 3 timed)
Programmable timed shutdown	30 / 60 / 120 / 240 min
Voltage Range	11-18 VDC.
Weight	1.15 Lbs
Width	4.5 inches
