PDU-27SS

Features & Description:

Power Distribution Unit - 27SS

  • Low Battery Voltage Shutdown at 11.5VDC.
  • Programmable Timed Shutdown: 30 min, 60 min, 120 min, 240 min
  • Vehicle Battery Voltage Monitoring
  • Each output has an LED fuse status indicator
  • ZERO Current consumption in Standby Mode
  • 14 Outputs (14 hot with Ignition or timer Dip switch selectable)
  • 7 Battery Outputs
  • 4 Relay Controlled Outputs (Ground, Always open, Always Closed)
PDU-27 SS single point power distribution and voltage monitoring system allows you to streamline your wiring while protecting your vehicle battery.

Gallery

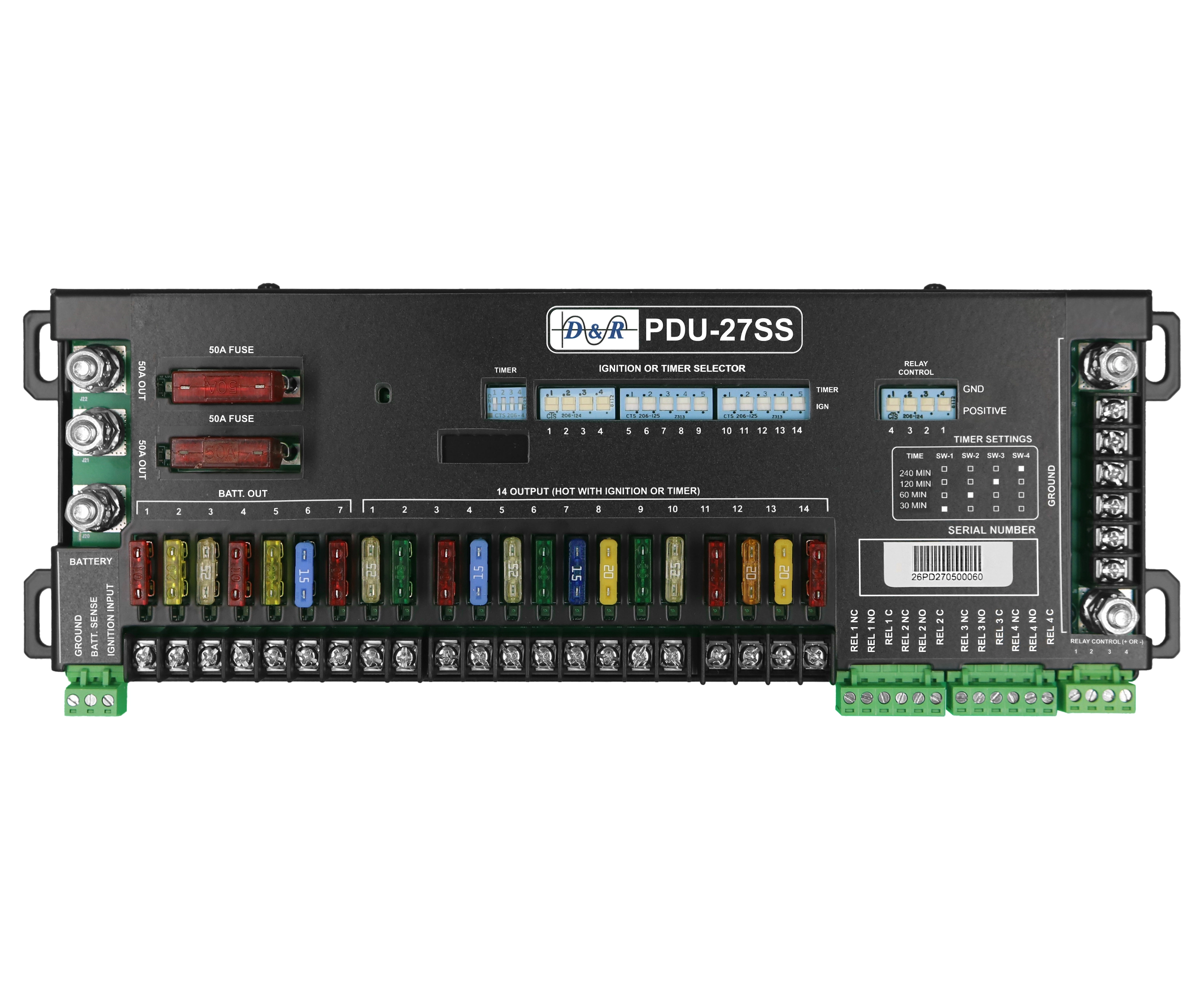

PDU-27SS

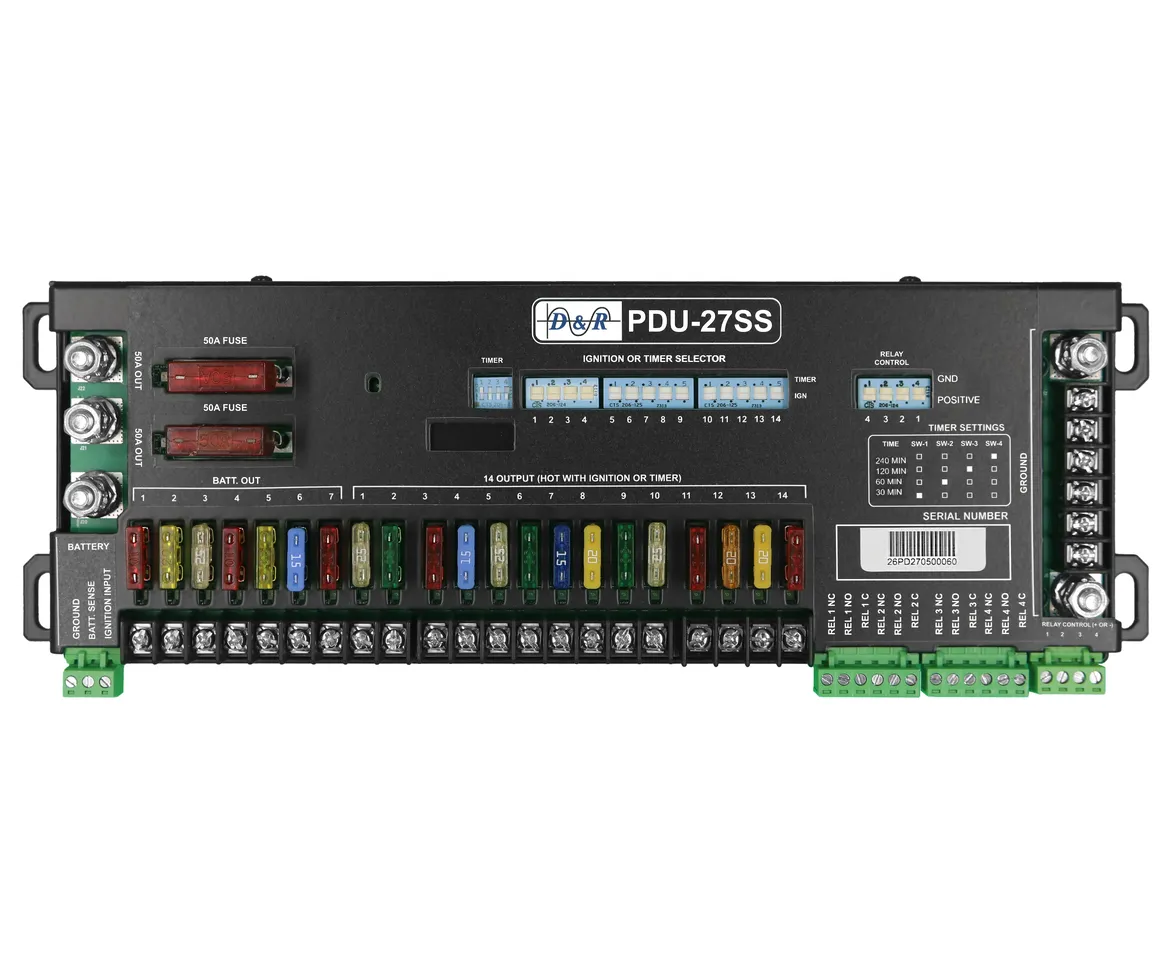

PDU-27SS
Height 1.5 inches
Length 6.2 inches
Maximum Current Load 100A Total
Maximum Current per Output Terminal 20A
Operating Temperature -40° C to +65° C (-40F to +149F)
Programmable timed shutdown 30 / 60 / 120 / 240 min.
Voltage Range 11-18VDC
Weight 1.15 lbs
Width 4.5 inches
