PDU14-K


Features & Description:

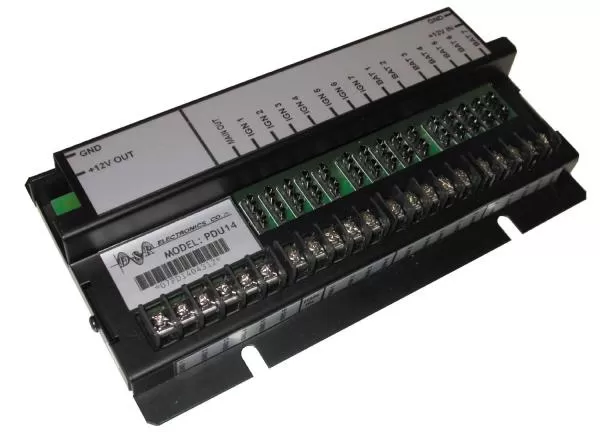

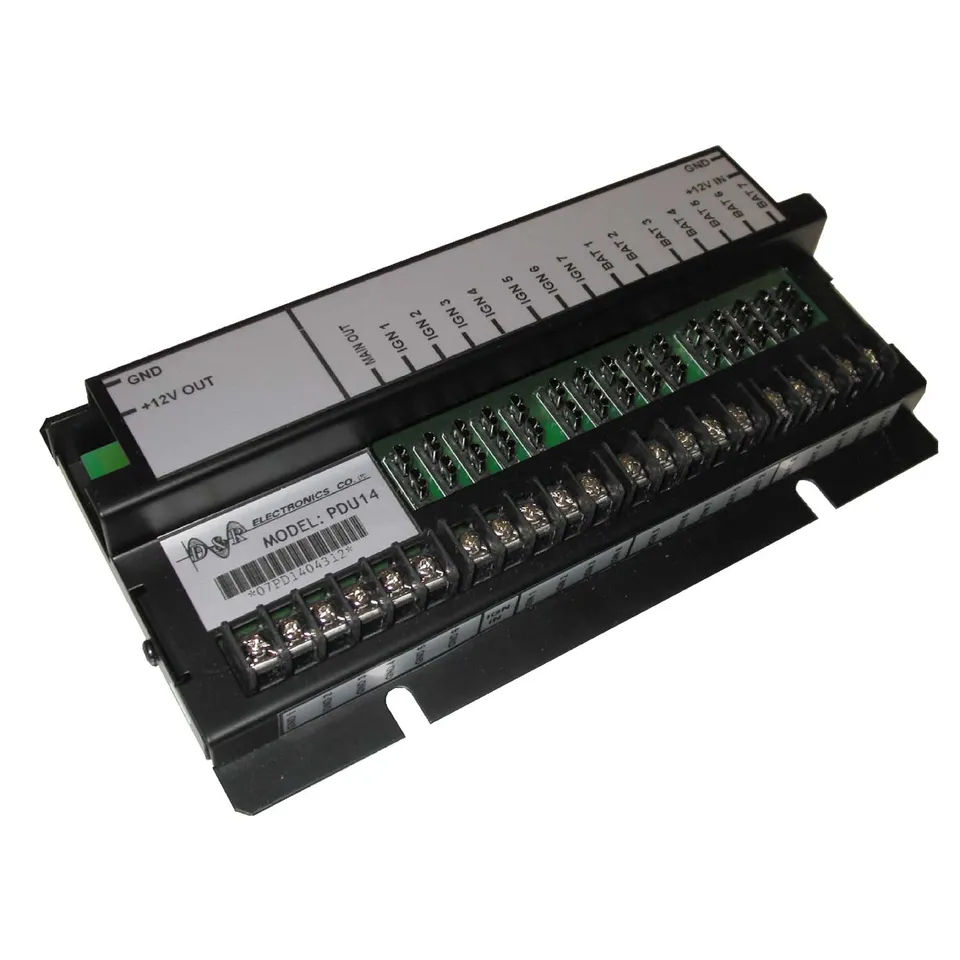

Power Distribution Unit 14-K

  • Organizes vehicle wiring runs
  • All power connections at one central location
  • Easy installation
  • Easy connection of accessory equipment

Power Distribution Units (PDUs) provide a direct, easily traceable route to the input power source avoiding interfering with the vehicles factory wiring harnesses. Allowing for Programmable Low Battery Voltage Shutdown, Programmable Timed Shutdown, and Zero current consumption in Sleep Mode.

Depth 5.25 inches
Height 1.36 inches
Power Input 1-6 AWG +12V / 1-6 AWG Ground / 1-18 AWG Ignition Control Input
Power Output 1-10 AWG @ 20A Max +12V (fused at 30A) / 1-10 AWG Ground
Width 9.45 inches
