PDU-2SS

Features & Description:

Power Distribution Unit - 2SS

  • Available in 12V (PDU-2SS-12) or 24V (PDU-2SS-24) options
  • Built with all solid state components for reliability
  • Outputs are divided into two groups
  • Each group is individually programmed for time shutdown, after ignition is turned off
  • Four position dip switch allows the end user to set up the threshold time for each individual group
  • Voltage monitoring sensor to protect the battery
  • Vehicle battery voltage monitoring
  • Low Battery Voltage Shutdown  prevents a dead battery, Factory default parameter is set at 11.5V DC (10 Second Delay) or can be factory Set (between 10 V  DC to 13 V DC)  based on Clients requirements.
  • High Voltage Disconnect at approximately 18V  (10 Second Delay)
Power Distribution Units (PDUs) provide a direct, easily traceable route to the input power source avoiding interfering with the vehicles factory wiring harnesses. Allowing for Programmable Low Battery Voltage Shutdown, Programmable Timed Shutdown, and Zero current consumption in Sleep Mode. PDU-2SS is a single point power distribution system with with output 1 at a maximum  load capacity of 40 Amps  and output 2 with maximum load capacity of 20 Amps.

Gallery

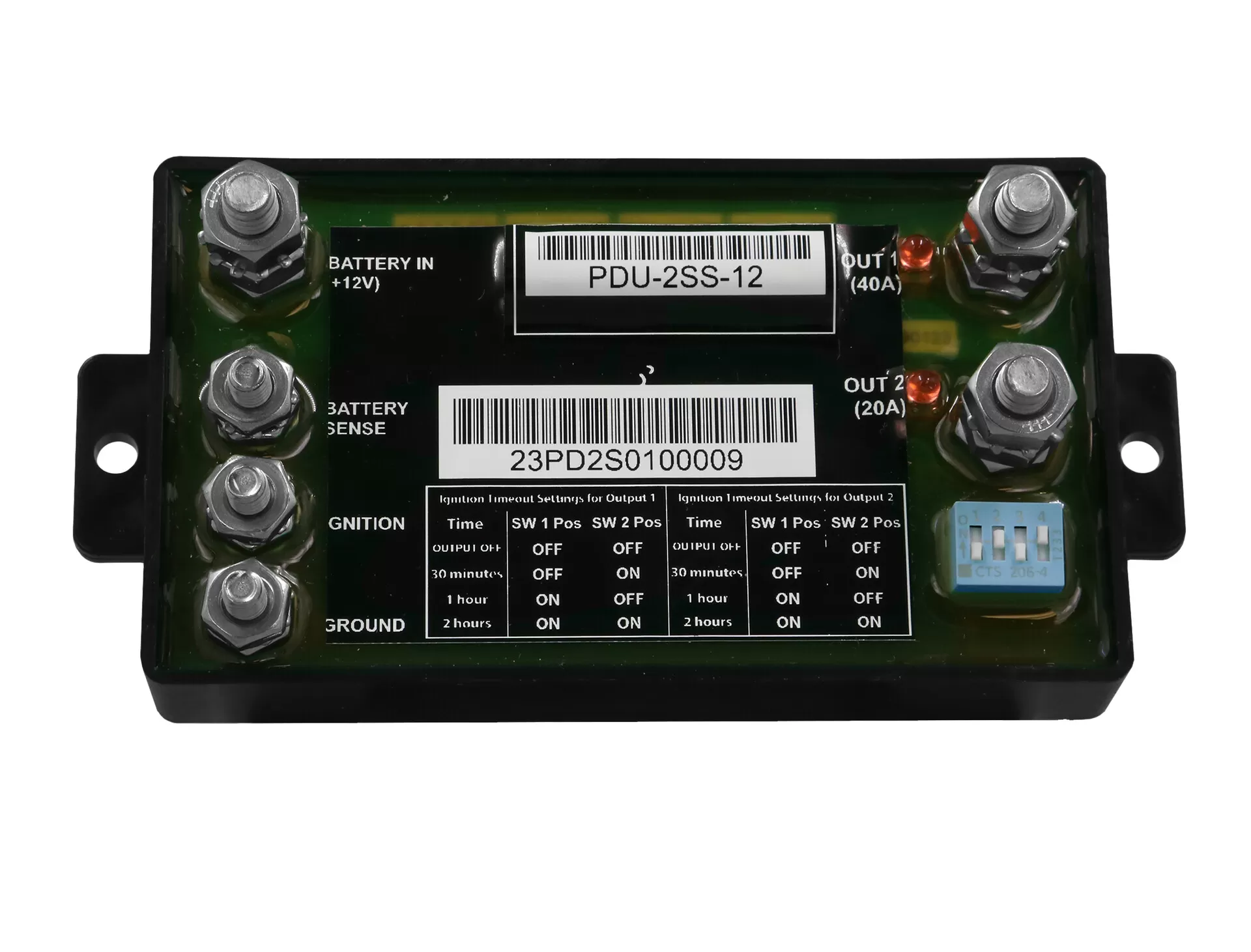

Straight-on top view with the ignition timeout settings table and the OUT 1 40A and OUT 2 20A studs

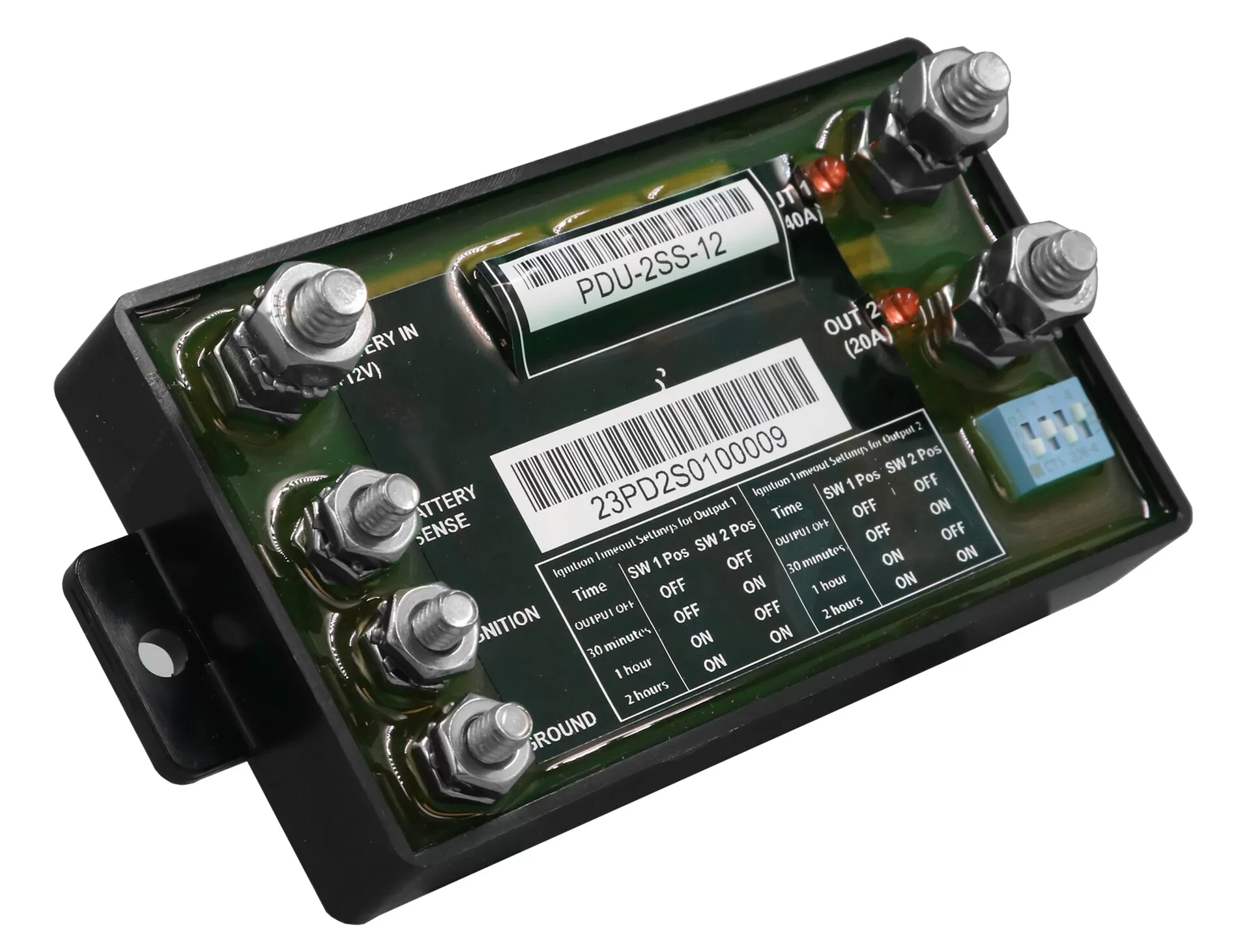

Tilted view showing the four-position DIP switch, side mounting bracket and low-profile black housing

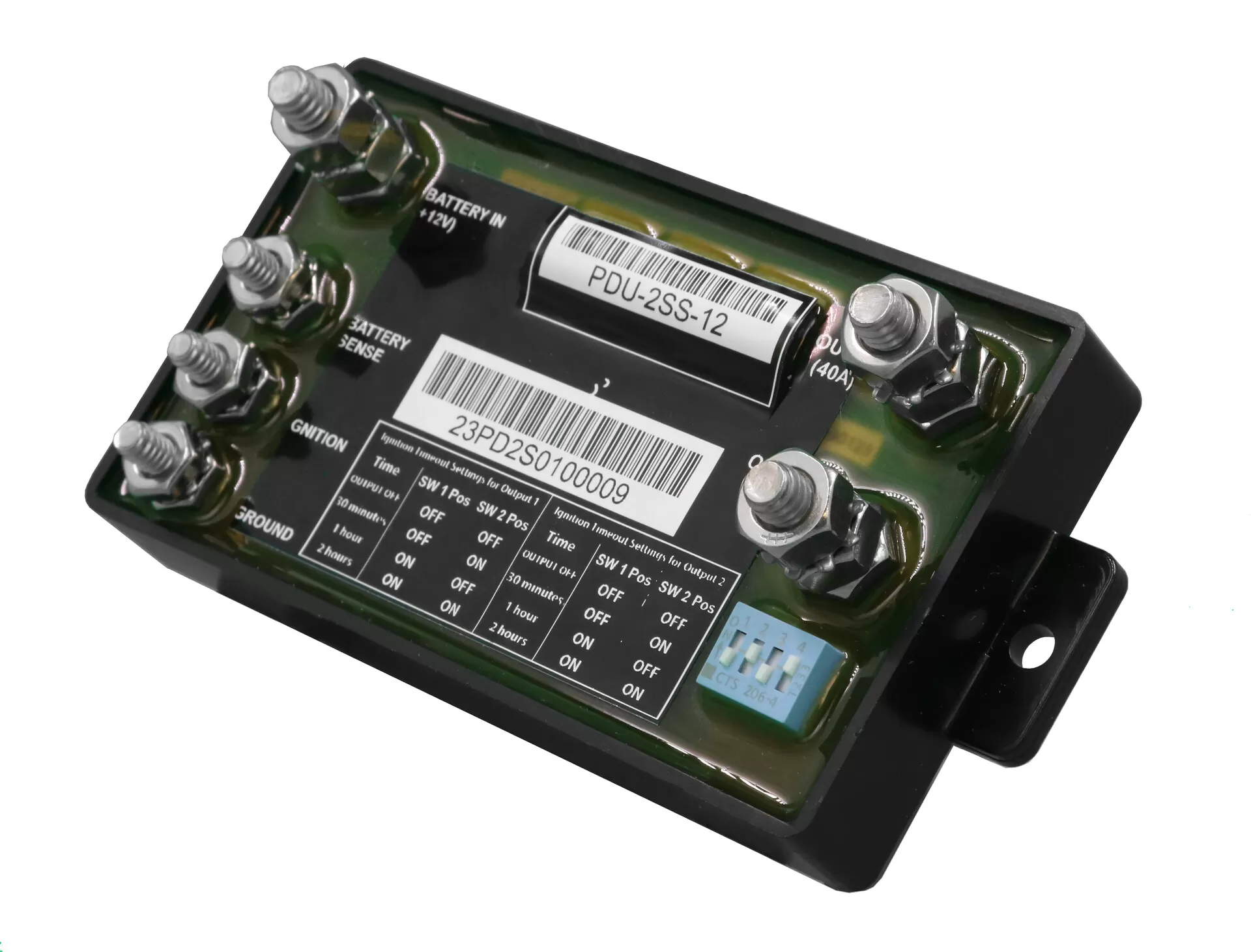

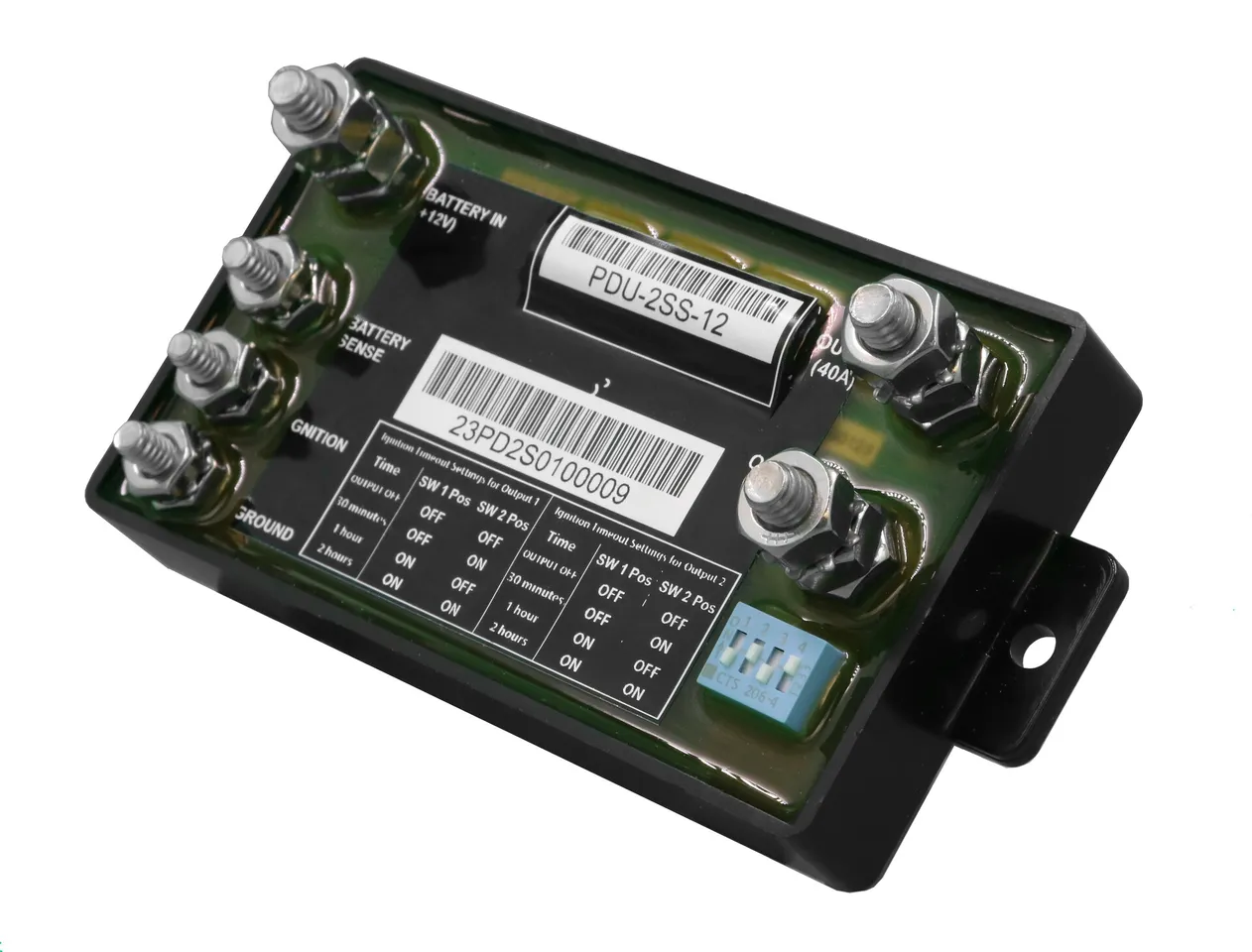

D&R PDU-2SS-12 power distribution unit with battery, sense, ignition and ground studs on a black chassis
Straight-on top view with the ignition timeout settings table and the OUT 1 40A and OUT 2 20A studs
Tilted view showing the four-position DIP switch, side mounting bracket and low-profile black housing
D&R PDU-2SS-12 power distribution unit with battery, sense, ignition and ground studs on a black chassis
Height 0.7 inch
Length 4.4 inches
Maximum Current Load 40A at output 1, 20A at output 2
Programmable Low Battery Voltage Shutdown Factory default parameter is set at 11.5V DC (10 Second Delay) or can be factory Set (between 10 V  DC to 13 V DC) based on Clients requirements
Voltage Range 12-24 VDC
Width 2.5 inches

PDU 2SS Sales Sheet

PDF, 1.07 MB
