Features & Description:

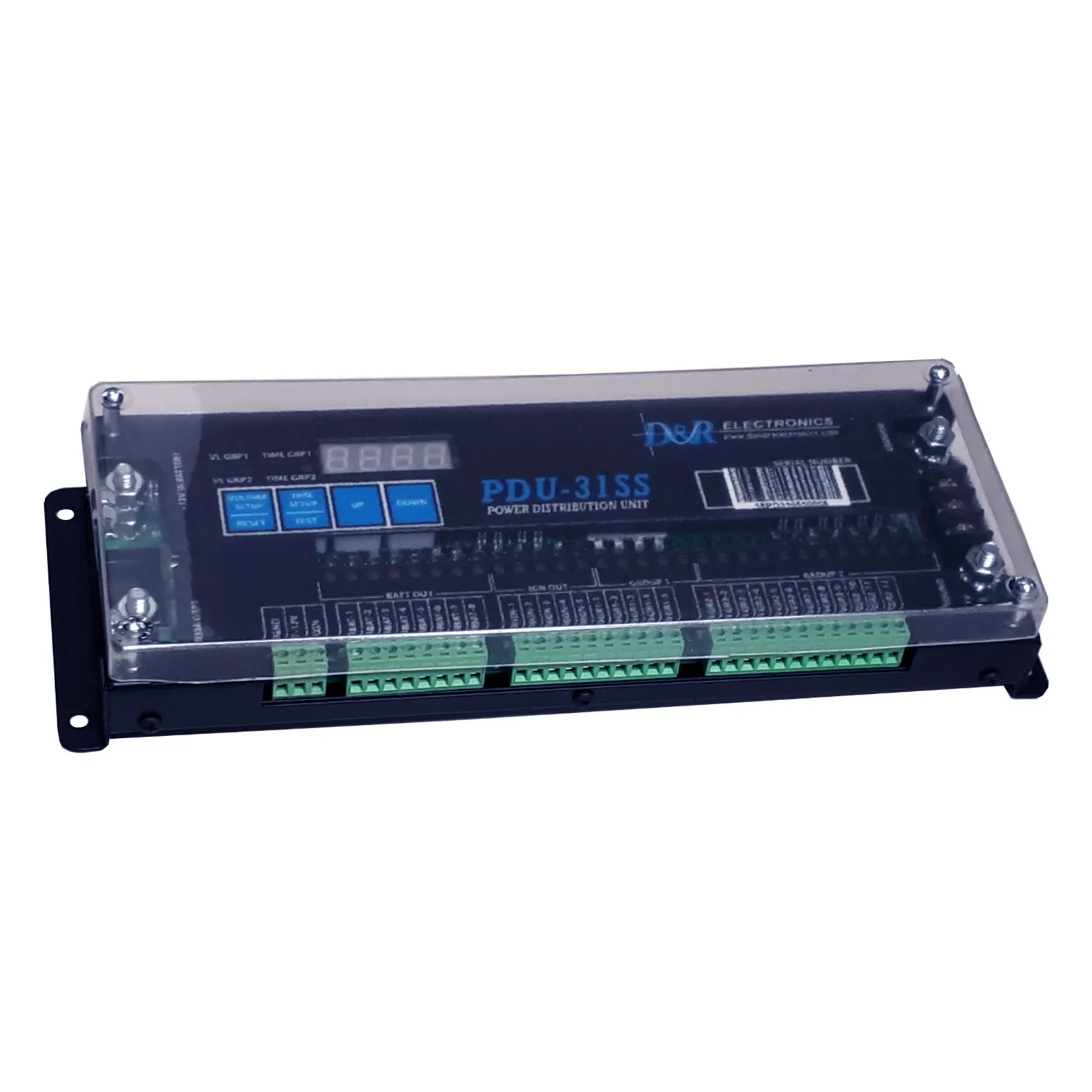

Power Distribution Unit - 31SS

Safe and secure power management
Peace of mind
Easy Installation
In addition to monitoring the incoming battery voltage via an LED display, the system monitors the voltage level of the connected accessories (up to 31 outputs).
The PDU-31SS divides the accessories in to three groups, battery, group 1 and group 2.
Group 1 and two are monitored individually and can be programed separately with different minimum voltages that will trigger a low voltage group shut down.
If group one shuts down, group two will continue to function and be monitored. If group two goes below its programed threshold, group two will then shut down. The system will save enough battery energy so the vehicle can be restarted.
Any faulty fuse or connection will be visible on the LED display.

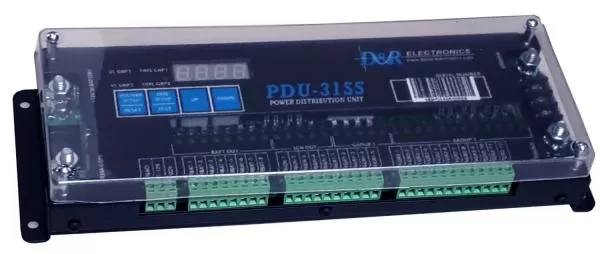

The PDU-31SS is all metal solid state construction. It comes with a Plexiglas cover to reduce dust and dirt

Power Distribution Units (PDUs) provide a direct, easily traceable route to the input power source avoiding interfering with the vehicles factory wiring harnesses. Allowing for Programmable Low Battery Voltage Shutdown, Programmable Timed Shutdown, and Zero current consumption in Sleep Mode. Our PDU-31SS single point power distribution and voltage monitoring system allows you to streamline your wiring while protecting your vehicle battery.

Gallery

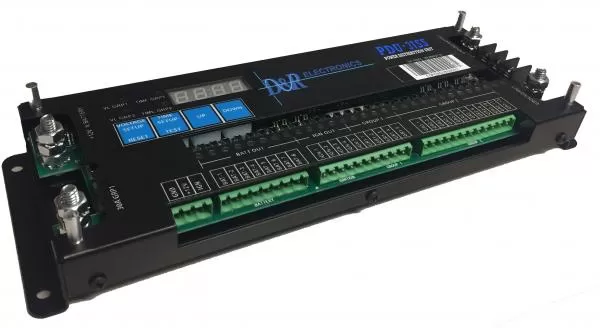

Power distribution unit with the cover off, showing setup buttons, fuse indicators and heavy battery and ground studs

Height	1.5 inches
Length	12.0 inches
Maximum Current Load	10A per output at 15A, 30A for heavy duty output (fused at 50A), 100A total maximum current per PDU
Output(s)	31
Programmable Low Battery Voltage Shutdown
Programmable timed shutdown
Reset mode
Voltage Range	11-18 VDC
Width	4.0 inches
