PDU42WB

Features & Description:

Power Distribution Unit 24WB

  • Organizes vehicle wiring runs
  • All power connections at one central location
  • Provides direct power, ignition power and timed power
  • Easy installation, easy connection of accessory equipment
  • Visual condition of circuits
  • Make a safer electrical connection to vehicles
  • Built-in Watchdog (battery discharge protector)
  • Fast and reliable vehicle installations

Power Distribution Units (PDUs) provide a direct, easily traceable route to the input power source avoiding interfering with the vehicles factory wiring harnesses. Allowing for Programmable Low Battery Voltage Shutdown, Programmable Timed Shutdown, and Zero current consumption in Sleep Mode.

Gallery

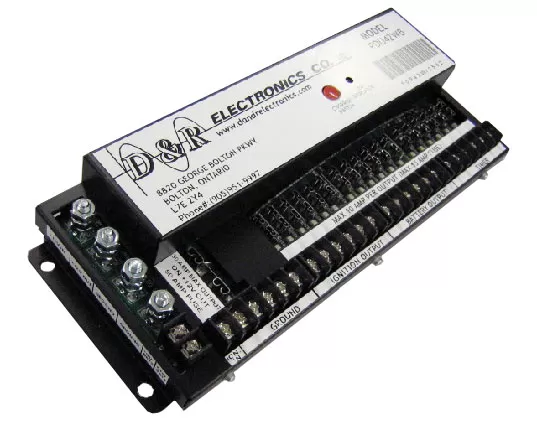

D&R PDU42WB power distribution unit with ground, ignition output and battery output terminal block rows
D&R PDU42WB power distribution unit with ground, ignition output and battery output terminal block rows
Operating Current 600mA
Operating Voltage 11.5-18V
Power Input 1-6 AWG +12V @ 60A max input current / 1-6 AWG Ground / 1-18 AWG Ignition Control Input
Power Output (High Current Connection) 1-8 AWG @ 30A Max +12V (fused at 50A)
Power Output (High Current Connection) 1-8 AWG Ground

Installation Manuals

PDF, 0.76 MB

Info Page

PDF, 0.21 MB
