Description:

Power Distribution Units (PDUs) provide a direct, easily traceable route to the input power source avoiding interfering with the vehicles factory wiring harnesses. Allowing for Programmable Low Battery Voltage Shutdown, Programmable Timed Shutdown, and Zero current consumption in Sleep Mode.

Gallery

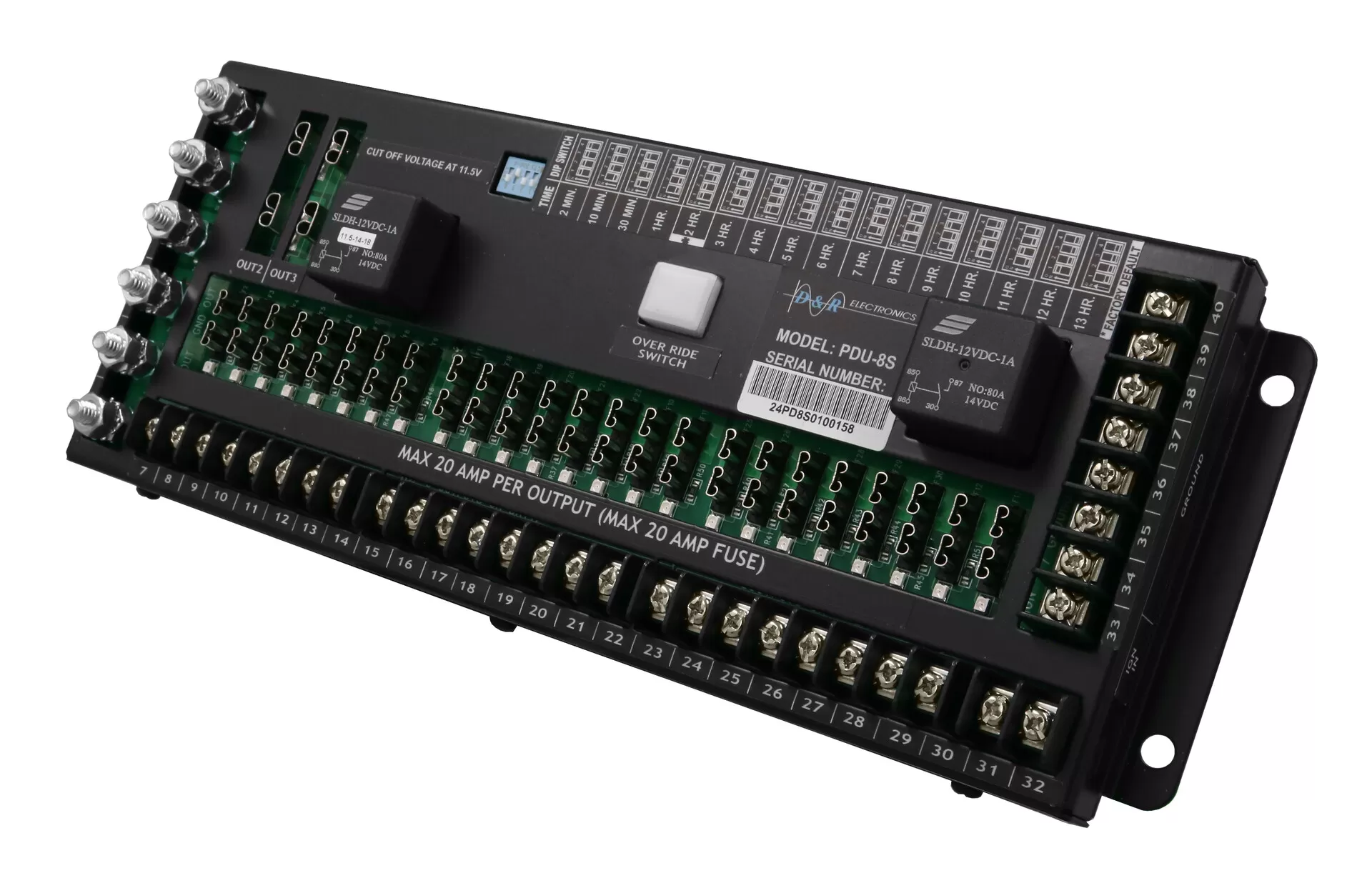

Angled from the left showing terminals numbered 7 to 32 marked max 20 amp per output with fuse rows

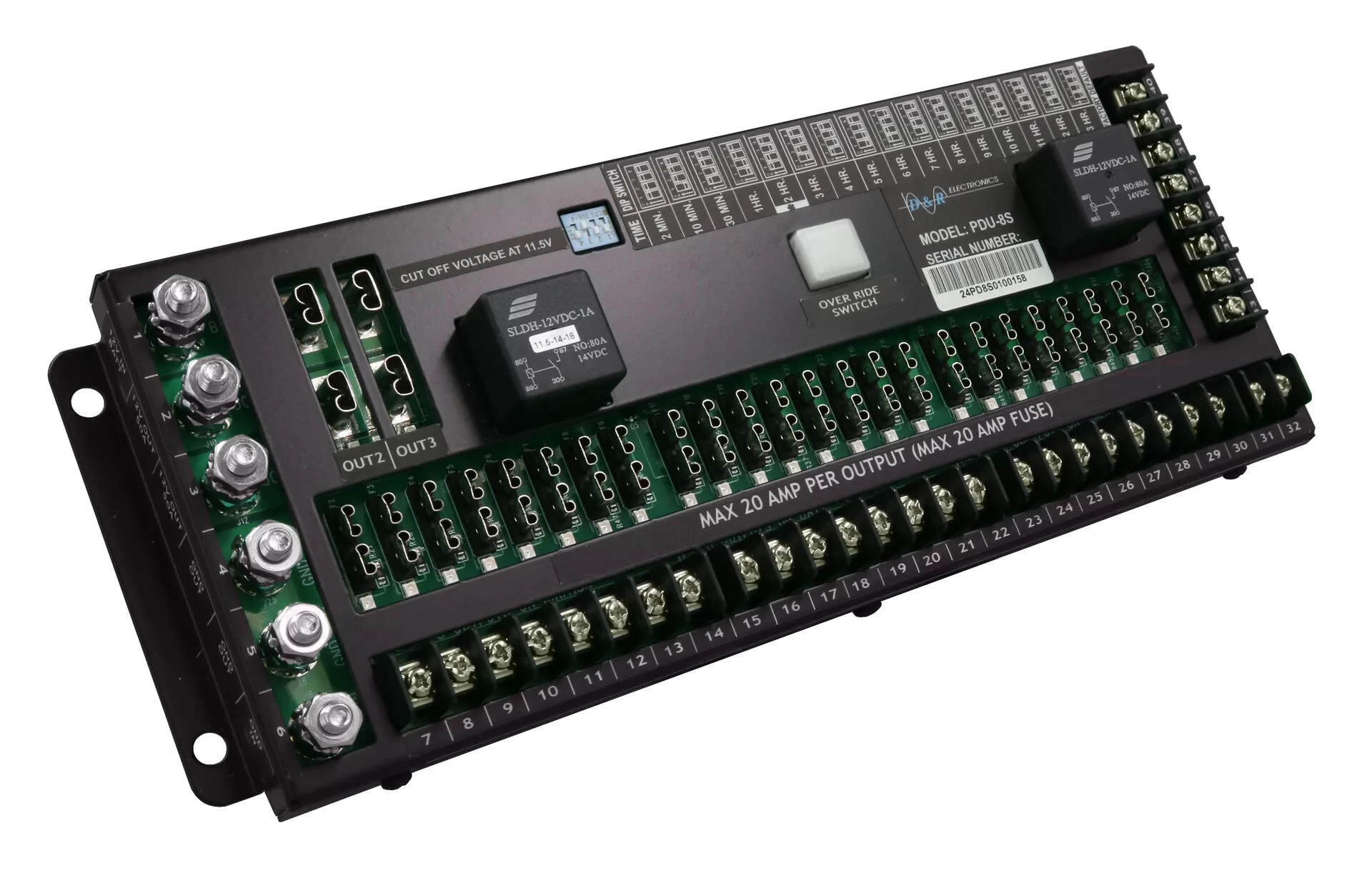

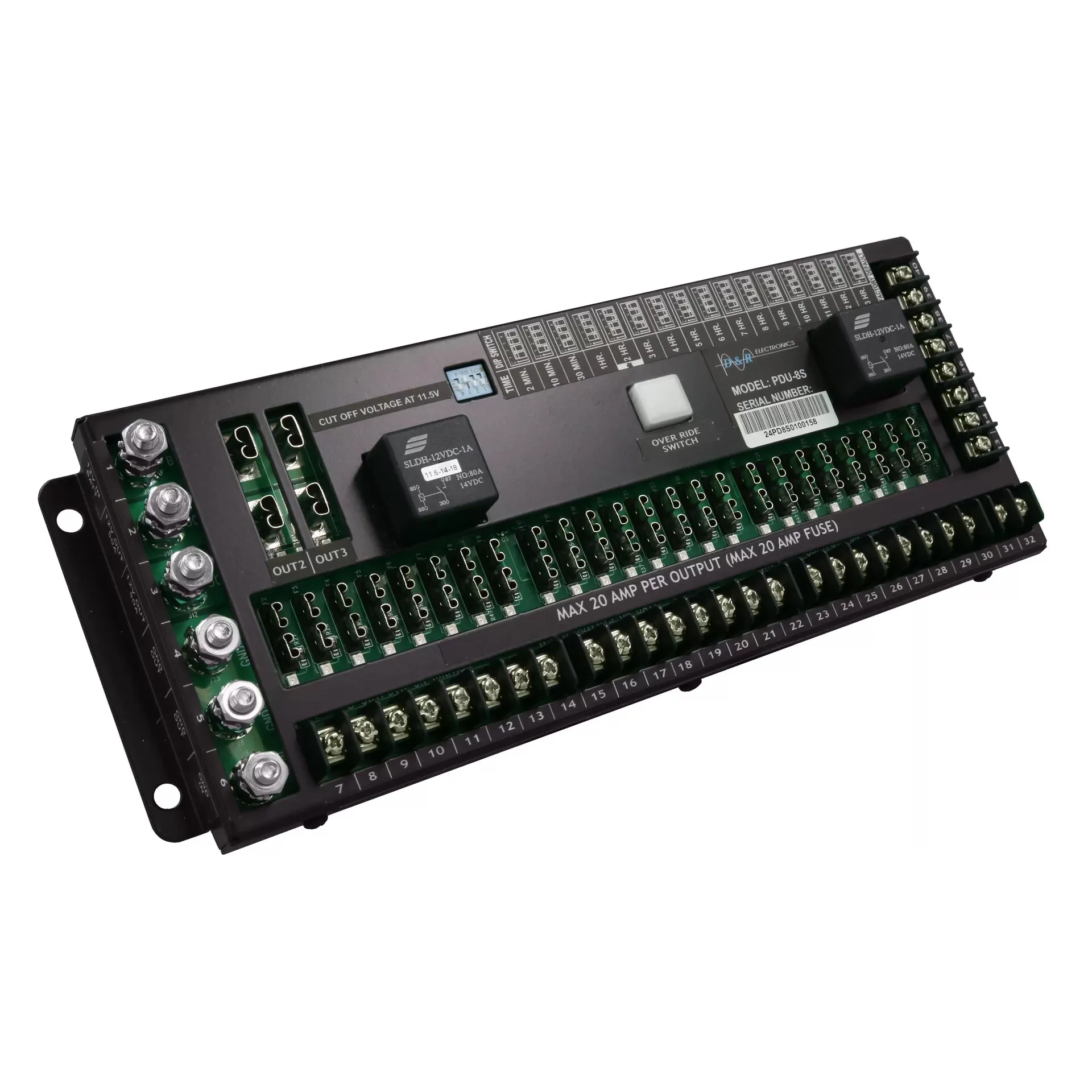

D&R PDU-8S power distribution unit with numbered output terminal blocks, relays and over-ride switch

PDU-8S

Power Distribution Unit - 8S

Organizes vehicle wiring runs
All power connections at one central location
Provides direct power, ignition power and timed power
Easy installation, easy connection of accessory equipment
Visual condition of circuits
Make a safer electrical connection to vehicles
Fast and reliable vehicle installations

Height	1.1 inches
Length	10.55 inches
Operating Temperature	-40°C to +65°C (-40°F to +149°F)
Output(s)	24 (8 Battery, 8 Ignition and 8 Timed)
Power Inputs	1-6 AWG +12V @ 60A max input current / 1-6 AWG Ground / 1-18 AWG Ignition Control Input
Power Output (High Current Connection)	2-8 AWG @ 50A Max +12V (fused at 75A) / 2-8 AWG Ground
Voltage Range	11.5-18 VDC
Weight	1.85 lbs
Width	4.26 inches

Installation Manual

PDF, 2.40 MB

Info Page

PDF, 0.48 MB

PDU-8S

Description:

Gallery

PDU-8S

Power Distribution Unit - 8S

Subscribe to our newsletter

Find a Dealer

PDU-8S

Description:

Gallery

PDU-8S

Power Distribution Unit - 8S

Related Products:

PDU14-K

PDU42WB

PDU-16SS

PDU-6SS

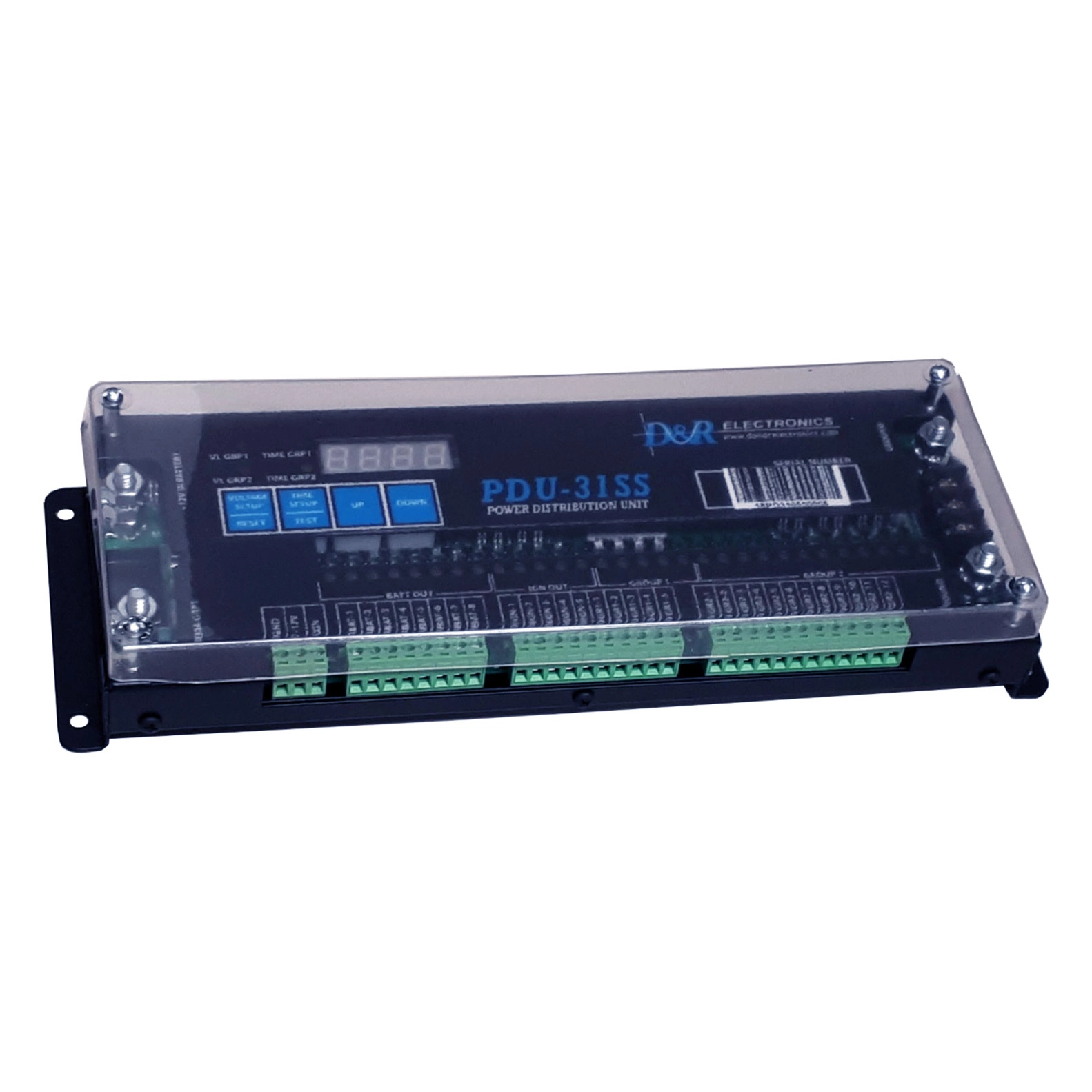

PDU-31SS
