ES6200-IQ

Features

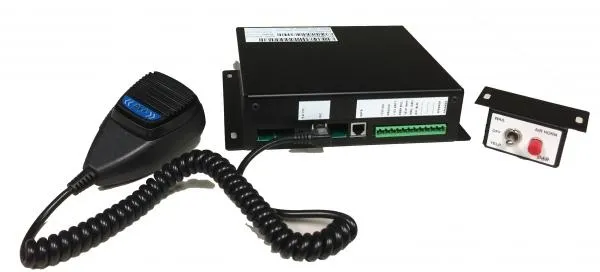

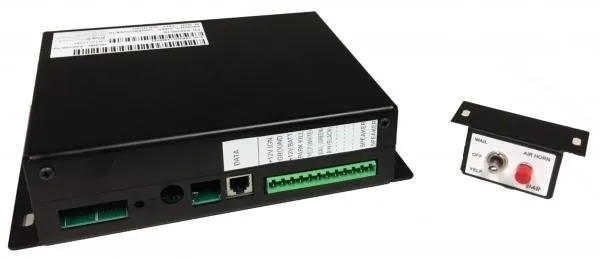

  • ES6200-IQ siren uses microprocessor based technology to provide a compact electronic siren system for use in emergency vehicles
  • Ideal choice for undercover applications-small compact control head and 18' long harness provide the installation flexibility for such applications
  • Siren Mode - two available siren tones: Wail and Yelp
  • Siren tones can be selected using the toggle switch from the remote controller
    - switch UP for Wail tone
    - switch DOWN for Yelp tone
  • Manual Mode - Air Horn
    It is momentary mode activated by holding down the Air Horn switch on the siren's remote controller
    Note: Manual mode will override the Siren mode

Supporting Files
Audio Files
Wail
Yelp
Literature / Downloads

If you have other questions please contact us or call 1-800-538-7338

Read more about our equipment in newsletter section

Technical specifications

Input Voltage
11-16 Volts DC
Input Fuse
20 Amp (External)
Power circuit built-in protection
Short circuit and reversed polarity
Operating Temperature Ranges
-30°C to +65°C
Standby Current
50mA +10% during Ignition input OFF time-out 0mA after time-outSIREN
Operating Current
10 Amps
Frequency Range
700 to 1640 Hz (nominal)
Cycle Rate
Wail
Audio Power
32watt
Amplifier Output Impedance
11 Ohms
