934-1026A

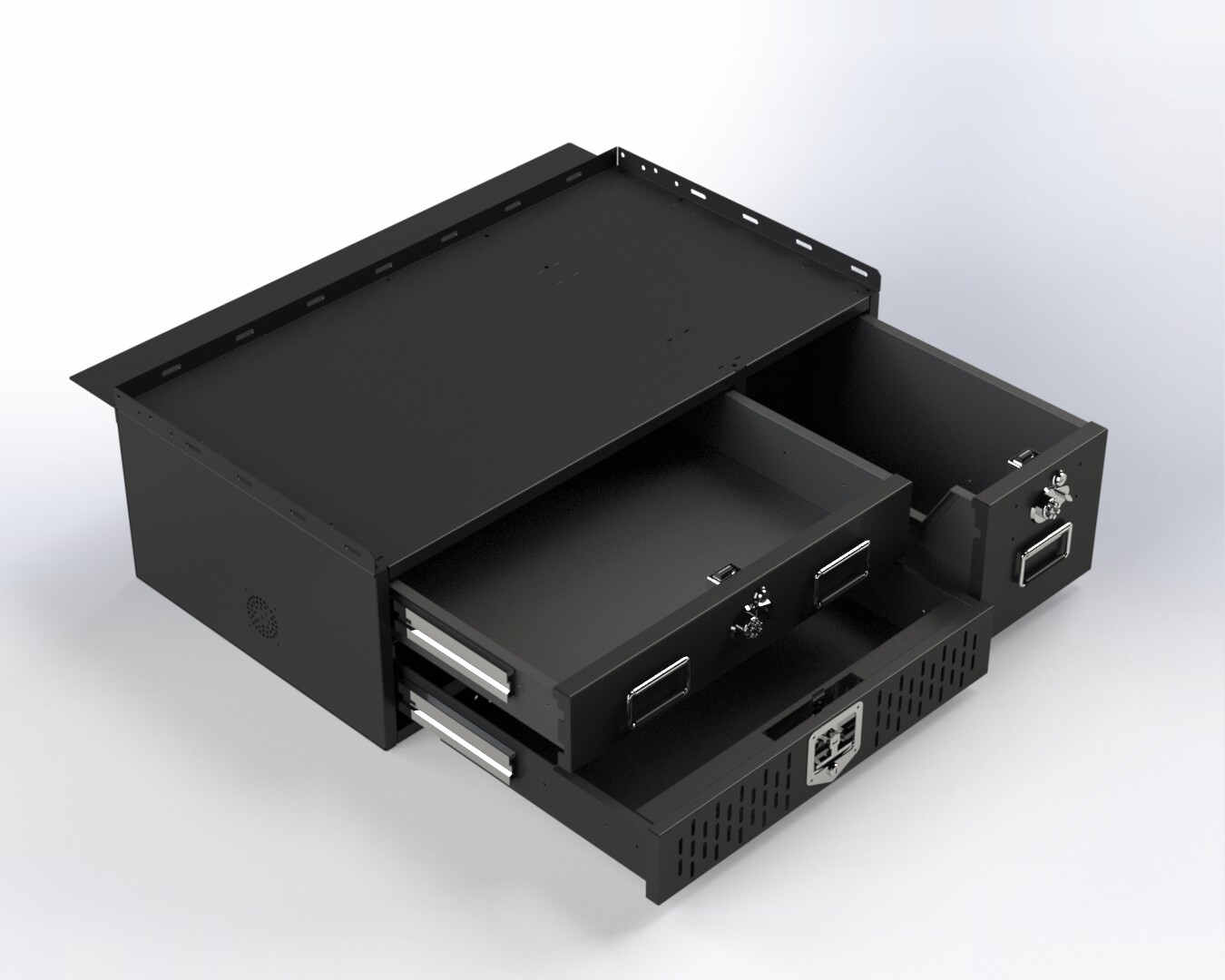

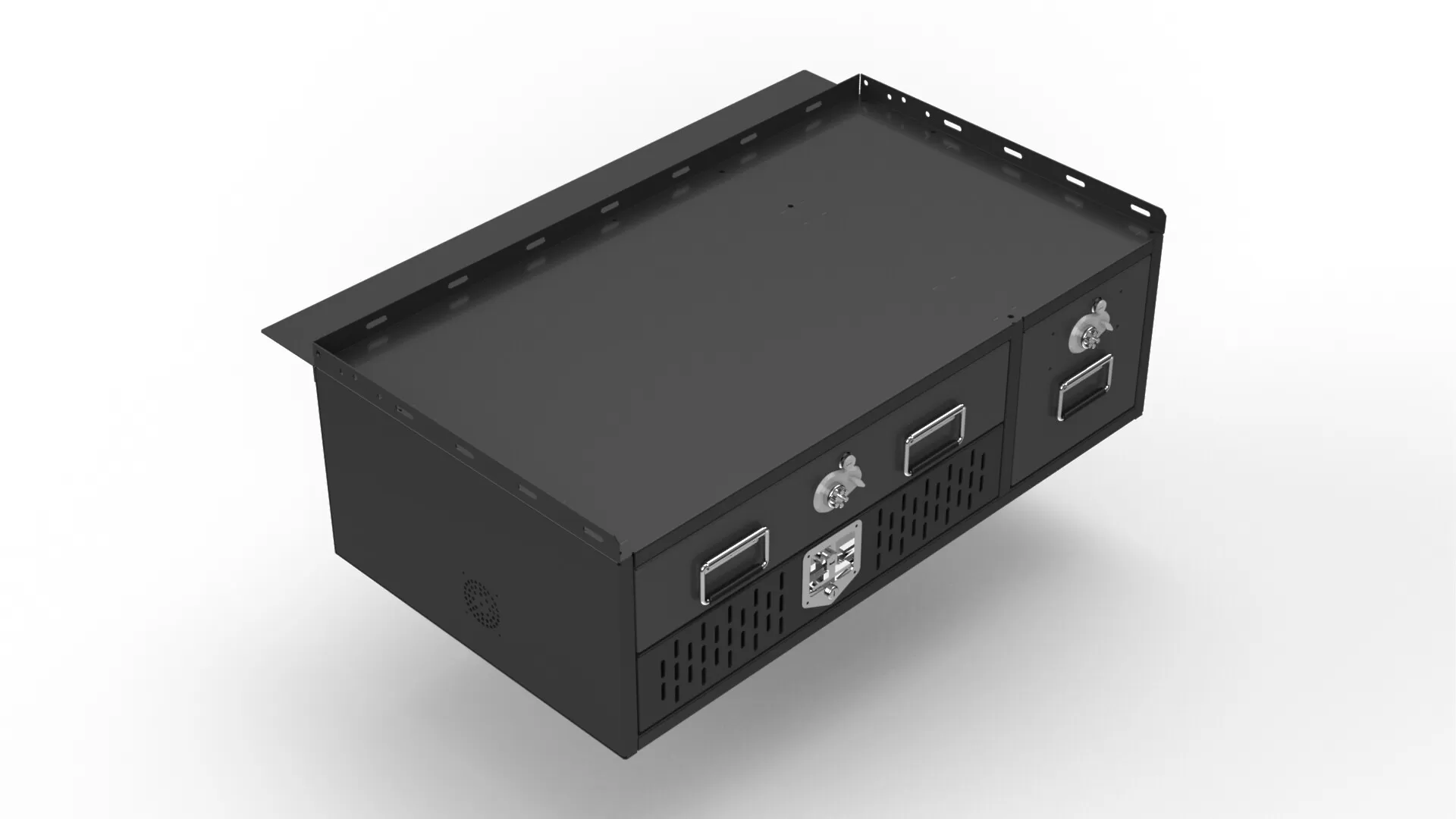

3 Drawer Cabinet (Custom)

• Ford Expedition from 2016 to 2025.
• Chevy Tahoe 2016 – 2025.
• Sub-frame (933-0238A - Chevrolet Tahoe Full Sub frame).
• Over all Dimensions:
  • Length: 30.0 inches.
  • Width: 45.0 inches.
  • Height: 15.0 inches.
    (Refer to engineering drawing for detailed measurements).
• Number of Drawer(s):
  • Two (2
• Internal Dimensions Drawer 2:
  • Length: 22.3 inches.
  • Width: 10.5 inches.
  • Height: 10.1 inches.
    (Refer to engineering drawing for detailed measurements).
• Types of Lock(s):
  • Two (2) 906000026001 Simplex Lock.
  • One (1) 400-1023 Recessed T-Lock.
• Types of Slides:
  • Three (3) Pairs of 22 inch Heavy Duty Slides.
• Finish:
  • Black Midnight Wrinkle paint.
• Material:
  • 11-gauge (0.09”) aluminum for strength and reliability.
• Easy Installation:
  • Quick and simple installation with all necessary hardware included.
• Special Futures:
  • Rubber Lined Drawer Bottom.
  • Electronics Drawer (Internal 16.1”L x 28.0”W x 4.5”H).
  • Wire Management.
• MUST BE PURCHASED SEPARATELY:
  • See D&R’s Cabinet and Partition selection for more custom solutions.
  • Sub-frames like (933-0238A - Chevrolet Tahoe Full Sub frame).
  • 934-1026A is designed to integrate with the larger assembly 999-0176A
