PFIQ12
Features

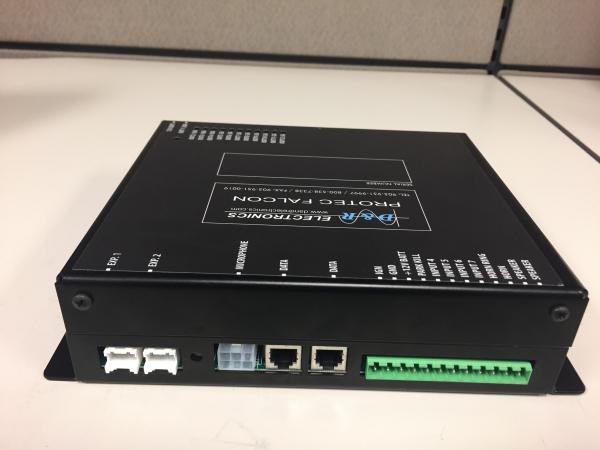

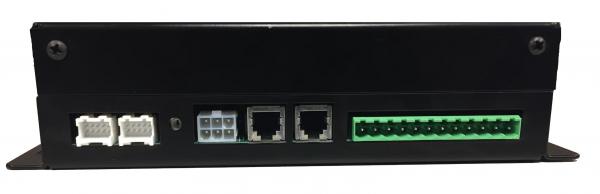

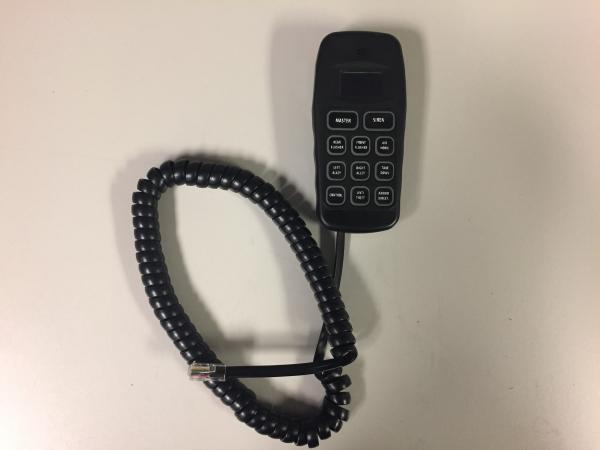

The Protec Falcon PFIQ is a programmable handheld siren and light controller, ideally suited for undercover and police management vehicles. The hand held controller can quickly be concealed if the situation requires it.
The system is available in 12 and 24 volts and is easily installed by a trained technician.
The Falcon is easily programed via a computer. The program can be downloaded to a thumb drive then installed on multiple units.
General specifications:
The Falcon PFIQ meets or exceeds applicable SAE requirements.
When configured with an applicable lighting package and D&R speakers it will meet NFPA requirements.
Literature / Downloads
If you have other questions please contact us or call 1-800-538-7338
Read more about our equipment in newsletter section
Technical specifications
Model Numbers
PFIQ-12 / PFIQ-24
Operating Temperature Range:
-40 degrees Celsius to +65 degrees Celsius.
Output Power
100 Watts
Horn ring transfer option
Siren tones
Wail, Yelp, Stinger, Air Horn.Tones are cycled through via horn ring transfer or control pad button.
Park kill.
Siren is shut down when in park.
Adjustable microphone volume.
Siren Control Box Dimensions
H: 1.96
Weight
4.7 lb. / 2.15kg.
Meets or exceeds SAE requirements.
System shutdown timer
is programmable, allowing the unit to stay active for a pre-programed period, after the ignition is turned off.
Continuous battery voltage monitoring
is presented on the touchpad display.
Microphone switch
is located on the side of the touchpad.
Microphone volume
can be adjusted through the IQ-Control box.
Shotgun Timed Relay
can be activated through touchpad.
Anti-theft relay
can be activated through touch pad.
Arrow Direction
available through touch pad (if vehicle is so equipped).
Outputs
1, 20AMP, 3, 10AMP, 8, 3AMP outputs
Expansion kits
Available for additional outputs. Up to two expansion kits can be added. Each kit contains an additional 10 outputs. Kits sold separately
