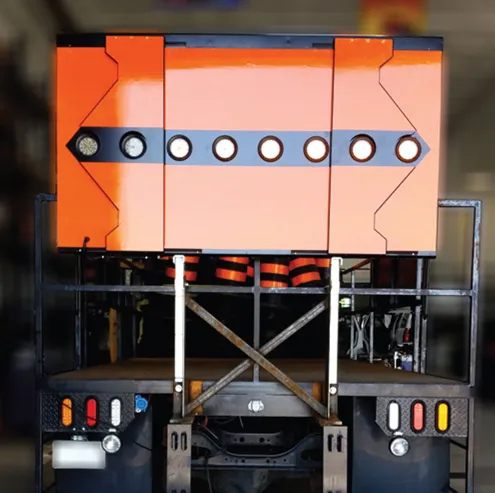

■ The AB488416KHT-FL-50 is a motorized arrowboard measuring 84” wide and 48” tall

■ By using flaps, the arrowboard can be configured as follows:

-Both arrows

-Left arrow

-Right arrow

-Horizontal line

■ 12 horizontal LED modules with two arrow modules at each end.

■ All signaling functions are controlled with the Compact D&R AS5500 controller

■ Constructed with a total of 16 PAR 36-40A sealed light modules with forty high intensity amber LEDs per module

■ The board and flaps are finished with 3M Type III High-Intensity orange retroreflective material on the face.

■ Comes complete with a 50’ cable assembly

■ Only the lights in the selected arrowboard mode will flash

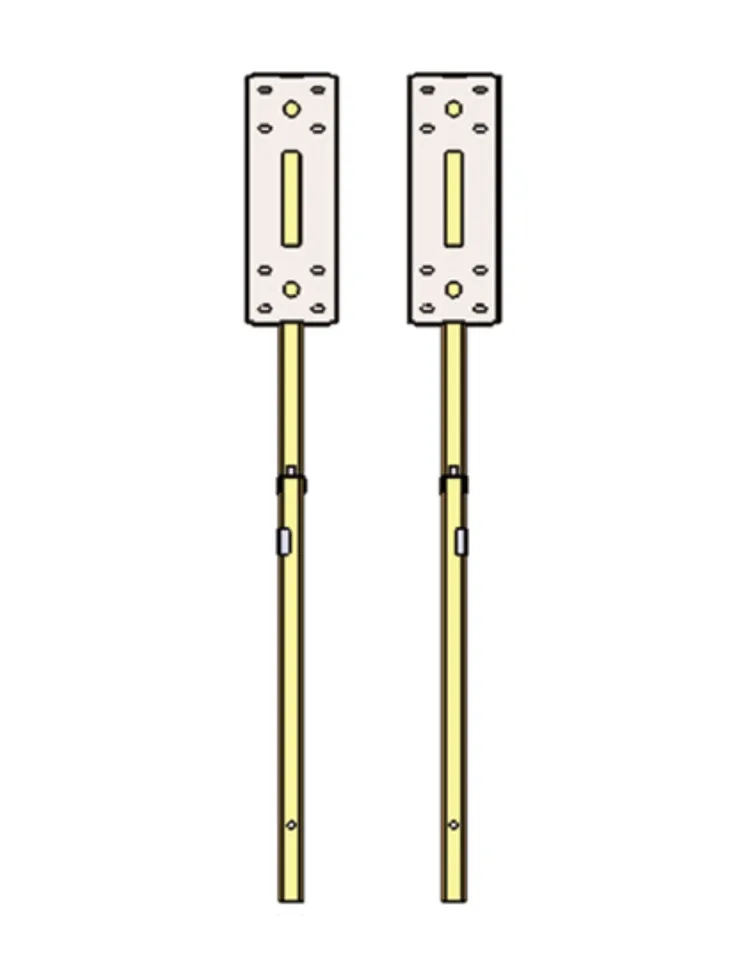

825-0602A Mount Brackets (optional)
