Model Number:

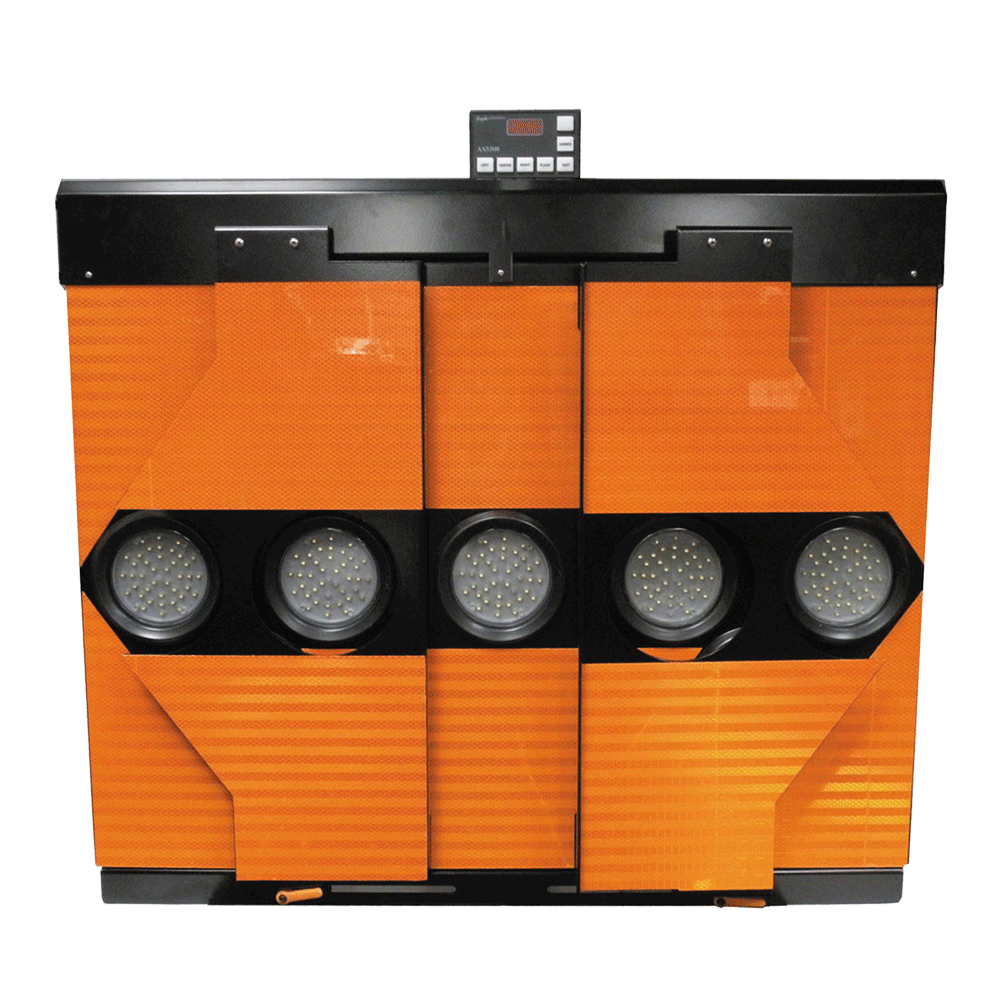

AB253513KHT-MF (Standard 20ft. harness w/Weathertight Connector, Manual Flaps)
AB253513KHT-MF-50 (Optional 50ft. harness w/Weathertight Connector, Manual Flaps)

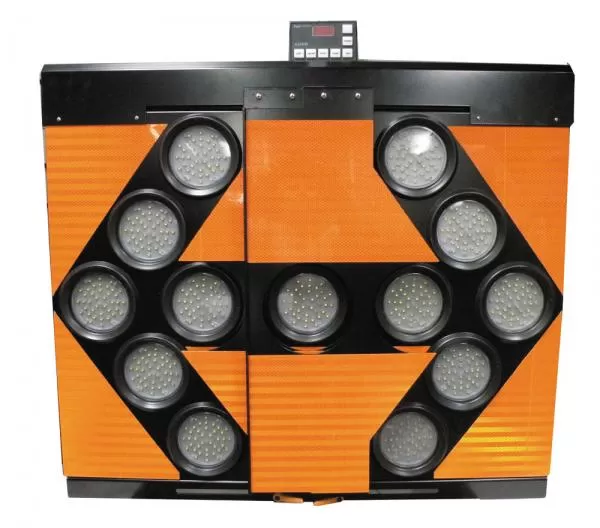

Auto Guide compact vehicle mounted TC-12 Non-Freeway LED Arrowboard

Arrowboard Module:

  • HD Formed/Welded Aluminum Arrwoboard Module with Semi-Gloss Black Powder Coated Finish on All Sides and Orange Hi-Intensity Retro-Reflective Material on the Face and Flaps
  • (13) Thirteen D&R HD Rubber Grommet Mounted Sealed light modules with (14) fourteen High-Intensity Amber LED'S Per Light

  •  (3) Three 3/8" Mounting Points in each end of the Arrowboard Module allowing for installation on a variety of vehciles as well as various locations on vehicles

  • Enclosed solid state circuit board

AS5500 controller: D&R Compact Multi Function in-cab controller with manual Dim and Arrowboard function screen in the face

Optional Upgrade: Photo Cell kit for Auto Dim Feature

PAR36-40A Sealed Light Modules rated at 12,000hrs

Literature / Downloads

If you have other questions please contact us or call 1-800-538-7338

Read more about our equipment in newsletter section

Technical specifications

Arrowboard Module

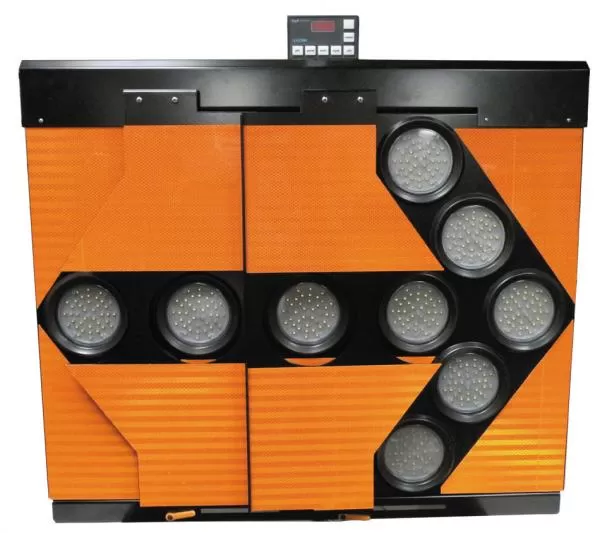

Right Arrow
Center Out
