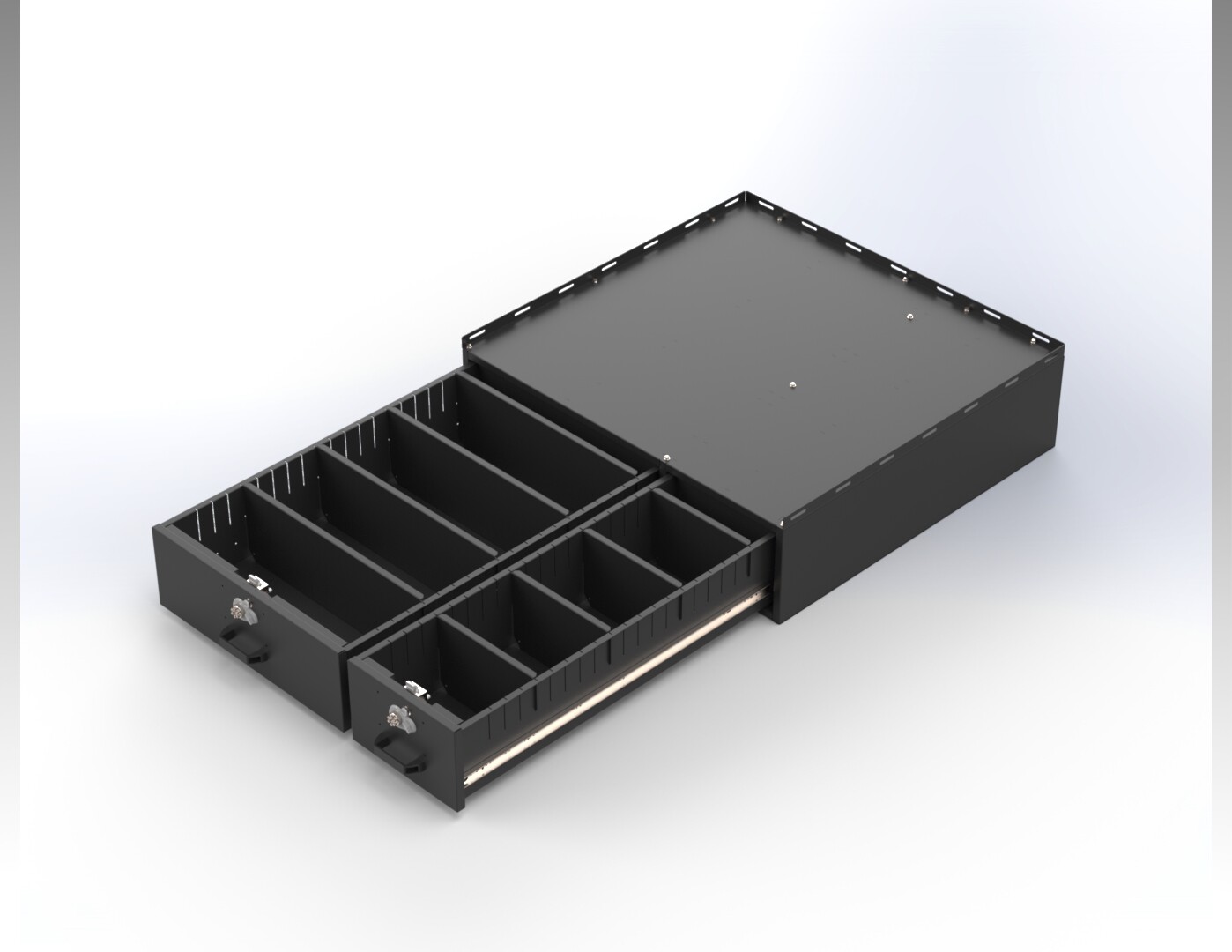

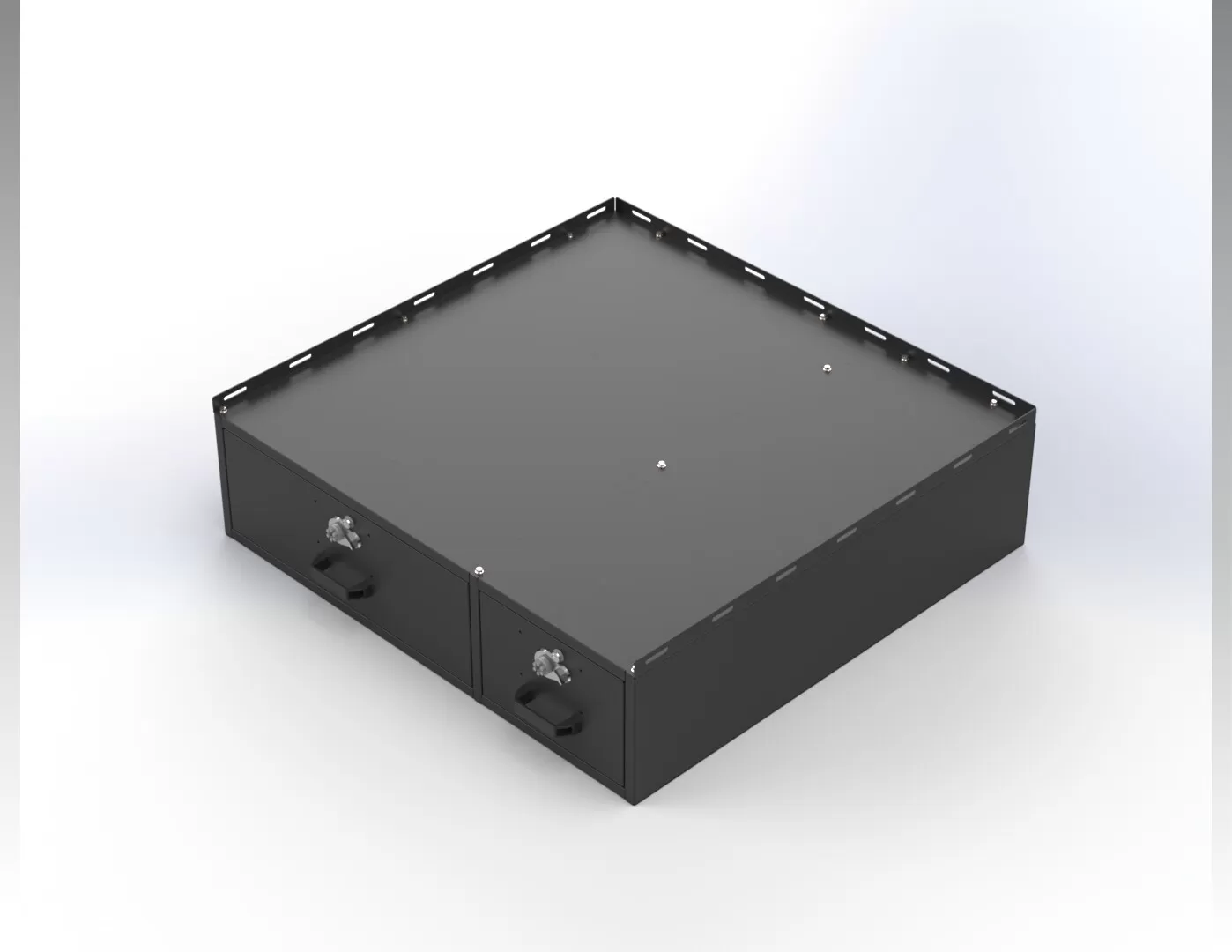

934-1005A
Features
- Fits:
- Ford Transit 250/350 from 2015 to 2019.
- Sub-frame (933-0128A 2017 Ford Transit 350 Sub-frame).
- Over all Dimensions:
- Length: 47.8 inches.
- Width: 48.0 inches.
- Height: 13.7 inches.
(Refer to engineering drawing for detailed measurements).
- Number of Drawer(s):
- Two (2).
- Internal Dimensions Drawer 1:
- Length: 42.7 inches.
- Width: 27.7 inches.
- Height: 9.2 inches.
(Refer to engineering drawing for detailed measurements).
- Internal Dimensions Drawer 2:
- Length: 42.7 inches.
- Width: 13.7 inches.
- Height: 9.3 inches.
(Refer to engineering drawing for detailed measurements).
- Types of Lock(s):
- Two (2) Simplex Lock 906000026001
- Types of Slides:
- Two (2) Pairs of 42 inch Heavy Duty Slides.
- Finish:
- Black Midnight Wrinkle paint.
- Material:
- 11-gauge (0.09”) aluminum for strength and reliability.
- Easy Installation:
- Quick and simple installation with all necessary hardware included.
- Special Futures:
- Rubber Lined Drawer Bottom.
- Eight (8) Dividers, Four (4) in each Drawer
- MUST BE PURCHASED SEPARATELY:
- See D&R’s Cabinet and Partition selection for more custom solutions.
- Sub-frame (933-0128A 2017 Ford Transit 350 Sub-frame).
